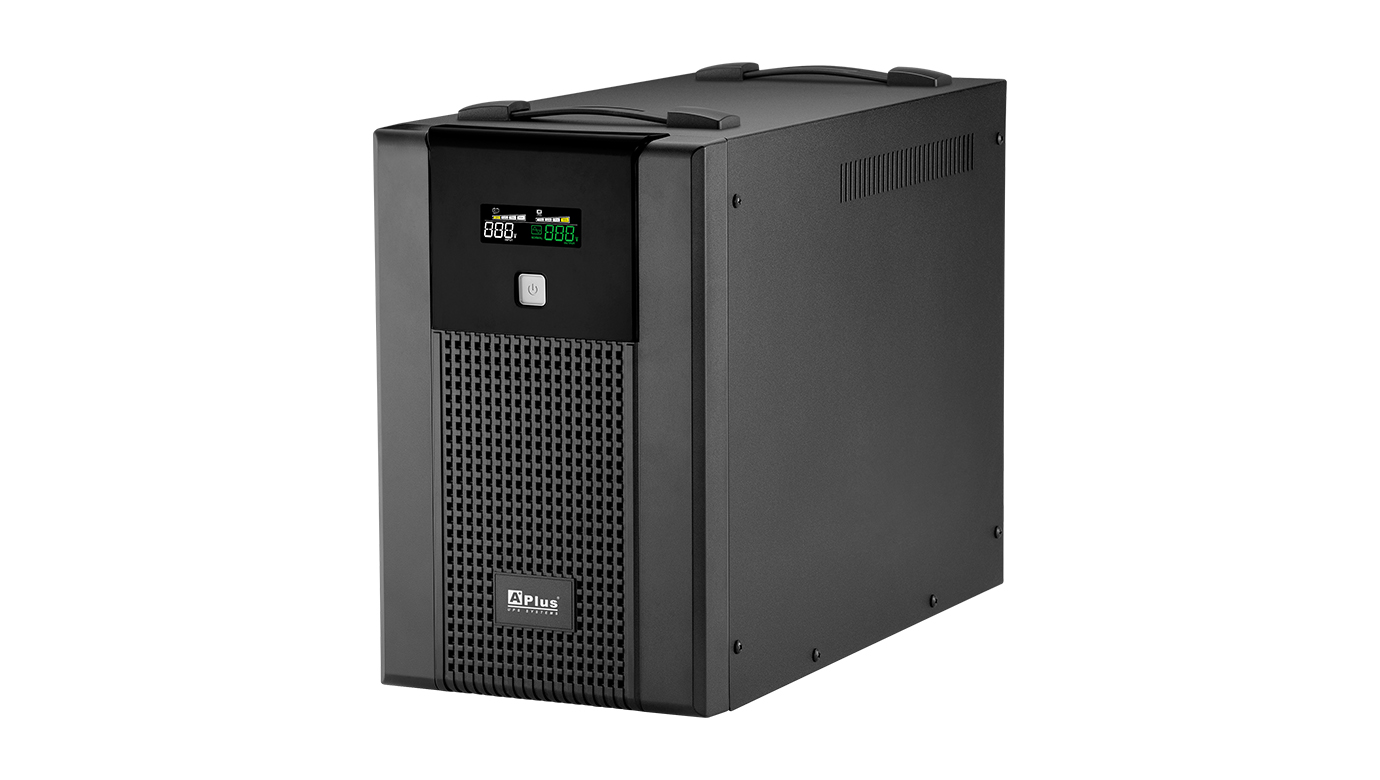

Plus5LB Series
2000VA to 3000VA
The Plus5LB Series 2000VA to 3000VA Line Interactive UPS provides guaranteed battery backup power during outage and unsafe fluctuation.
Featuring 2000VA to 3000VA integrated with voltage stabilizer, LCD display and full protection from damaging surges and spikes, Plus5LB Series UPS is the best choice to protect your data and keep you connected during utility blackout.
Featuring 2000VA to 3000VA integrated with voltage stabilizer, LCD display and full protection from damaging surges and spikes, Plus5LB Series UPS is the best choice to protect your data and keep you connected during utility blackout.
● UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
● Built-in DC start function enables UPS to be started without AC power supplied
● Constant current, constant voltage battery charger (CCCV Battery Charger)
● UPS will charge itself even though power switch is off (Off mode charging)
● USB port and monitor software is designed to manage UPS status via PC
● Over / under voltage protection (UPS will go to battery mode)
● Equipped with boost & buck AVR to stabilize output voltage
● Provide lighting, surge, overload and short circuit protection
● Built-in DC start function enables UPS to be started without AC power supplied
● Constant current, constant voltage battery charger (CCCV Battery Charger)
● UPS will charge itself even though power switch is off (Off mode charging)
● USB port and monitor software is designed to manage UPS status via PC
● Over / under voltage protection (UPS will go to battery mode)
● Equipped with boost & buck AVR to stabilize output voltage
● Provide lighting, surge, overload and short circuit protection
| MODEL | Plus5LB-U2000UN | Plus5LB-U3000UN |
| CAPACITY | 2000VA/1200W | 3000VA/1800W |
| INPUT | ||
| Voltage | 220/230Vac | |
| Voltage Range | -25%, +25% | |
| Frequency | 47-53Hz or 57-63Hz | |
| OUTPUT | ||
| Voltage Regulation | +/-10% | |
| Frequency | AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz | |
| Waveform | Simulated Sinewave | |
| Transfer Time | <6ms (Typical) | |

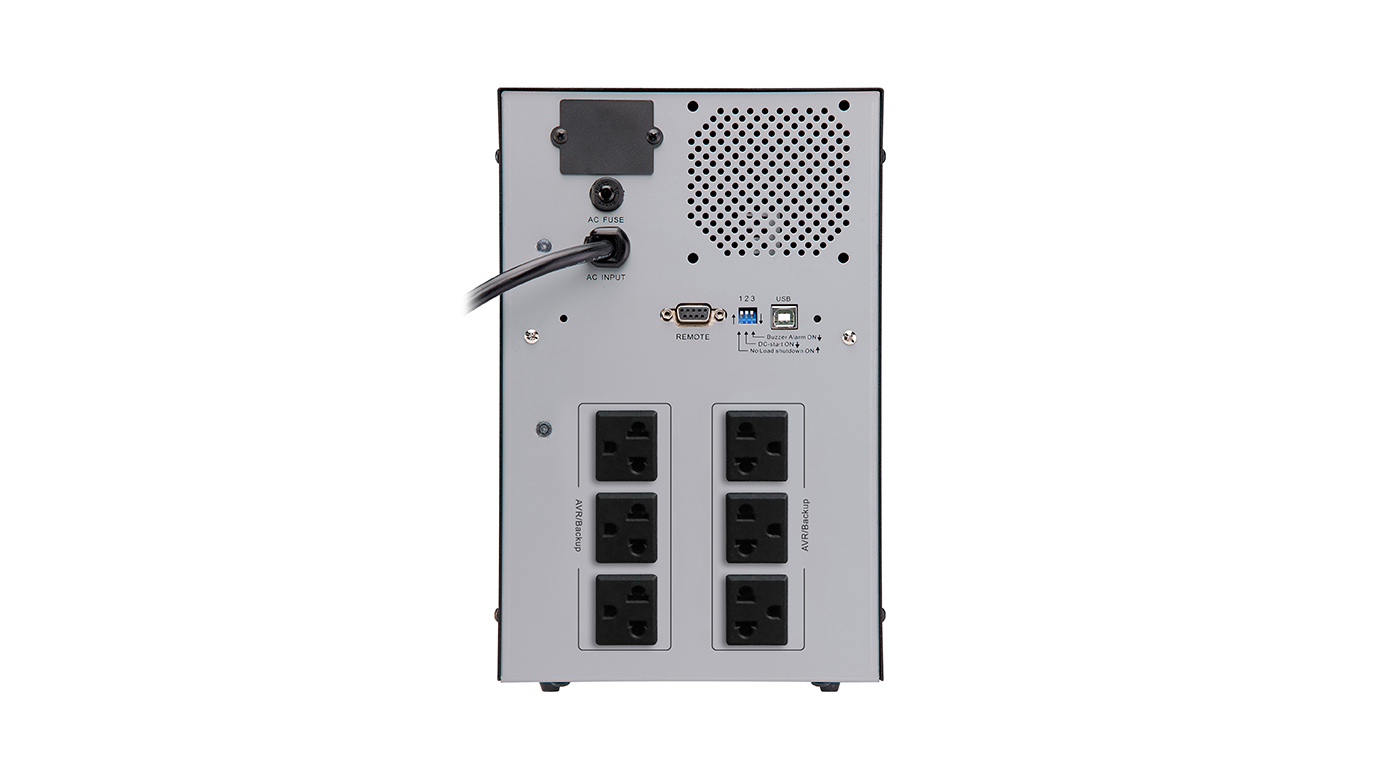

| Outlet: EURO-US | 8pcs backup/AVR/Surge protected | |
| BATTERY | ||
| Type | Maintenance free sealed lead-acid battery | |
| Voltage | 48VDC | |
| Capacity & Number | 12V/7AH*4pcs | 12V/9AH*4pcs |
| Recharge Time | 5 hours to 90% after complete discharge | |
| Safety Protection | Over Charge & Over Discharge Protection | |
| Advanced Battery Management | Yes | |
| DISPLAY | ||
| LCD Status Indicators | Input voltage, Output voltage, Load level, Battery level, Fault, Battery fail, Overload, AC normal | |
| AUDIBLE ALARM | ||
| Battery Mode | Two short tones every 8 seconds | |
| Low Battery | Four short tones every second | |
| Overload | Beeping continuously | |
| Fault | Beeping continuously | |
| MANAGEMENT | ||
| USB Communication Port | Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Microsoft Windows Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5 |
|
| ENVIRONMENT | ||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |
| Humidity | 0-95% (Non-condensing) | |
| Acousitc Noise | <40dB at 1M | |
| PHYSICAL | ||
| Dimension (D*W*H) | 390*182*285mm | |
| MODEL NAME | POWER RATING | MODEL FORMAT | INDICATORS | USB COMMUNICATION PORT | SOCKET TYPE |
| Plus5LB-U2000UN | 2000VA/1200W | Tower Type | LCD | YES | EURO-US |
| Plus5LB-U3000UN | 3000VA/1800W | Tower Type | LCD | YES | EURO-US |
*The capacity of connected loading do not exceed the capacity of UPS.
