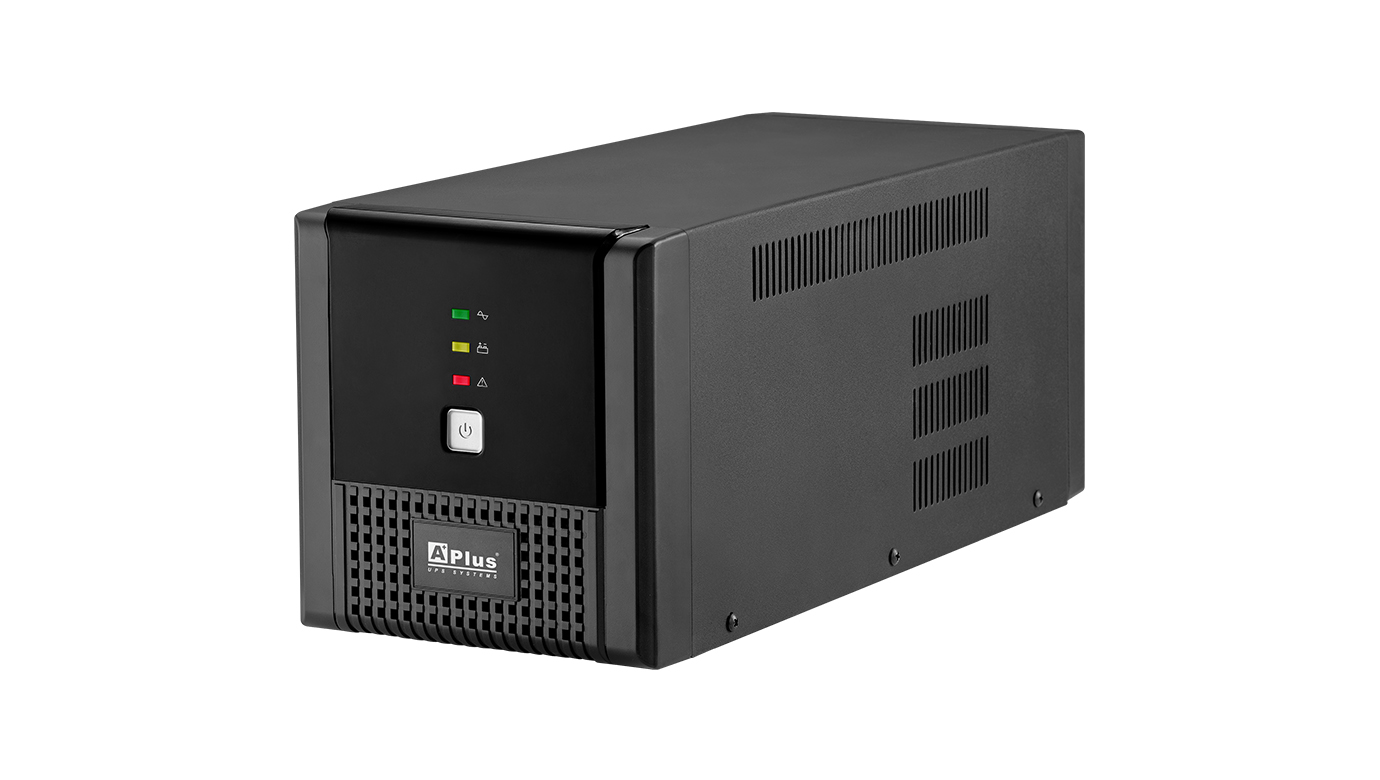

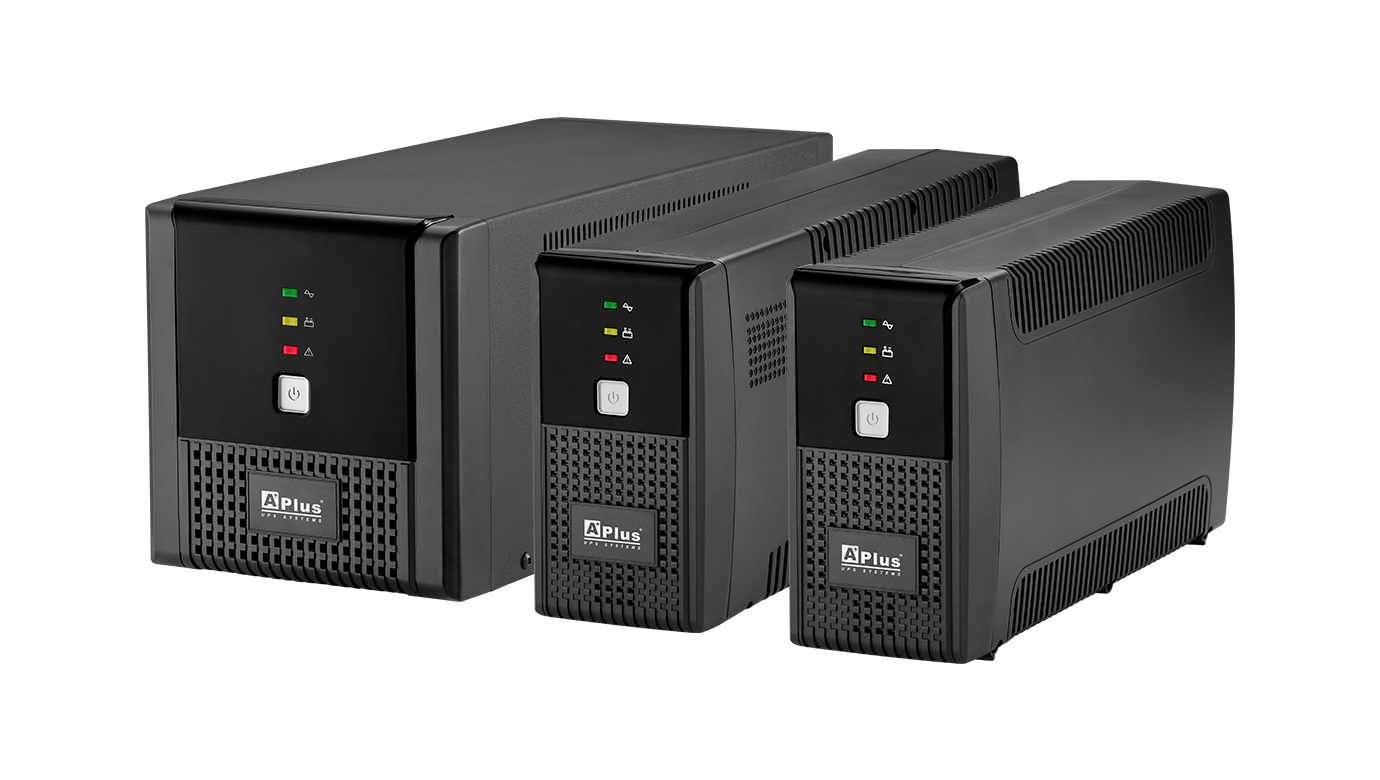

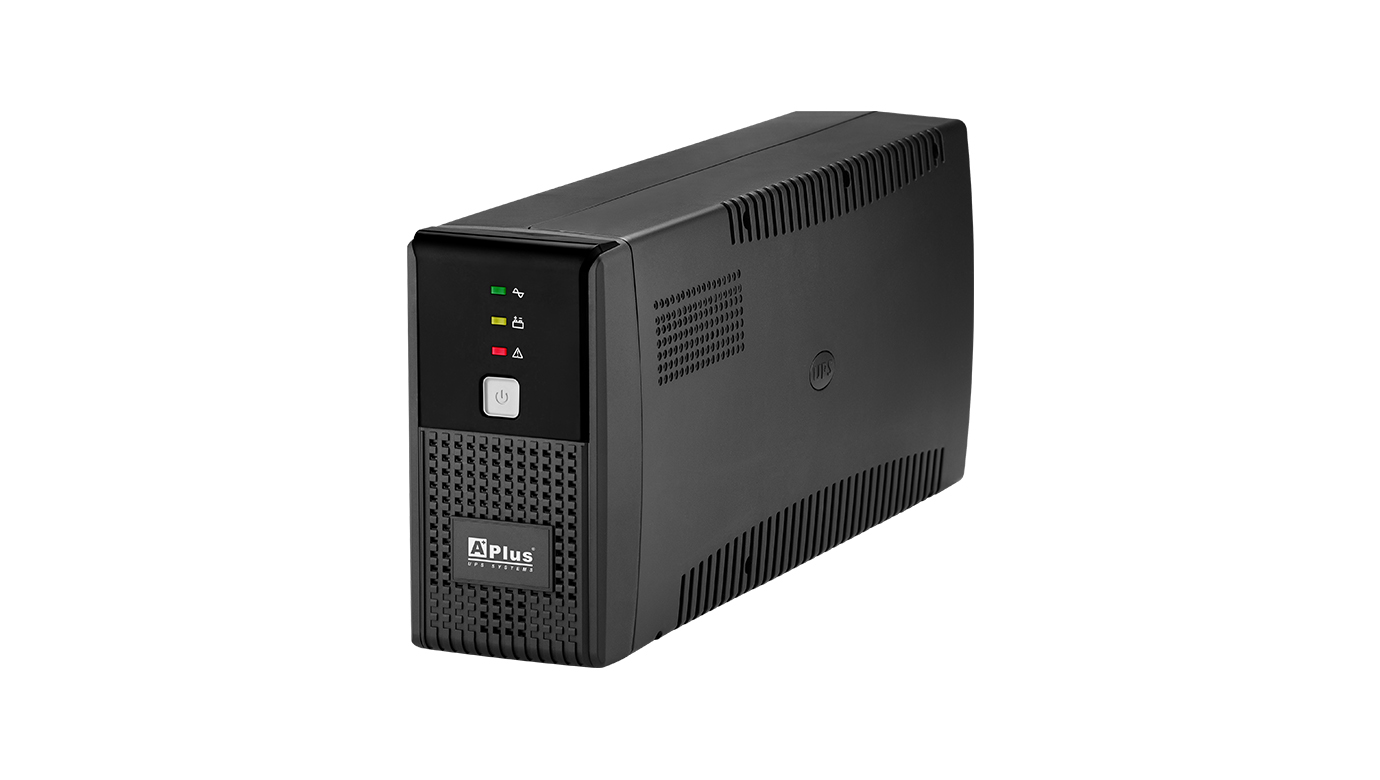

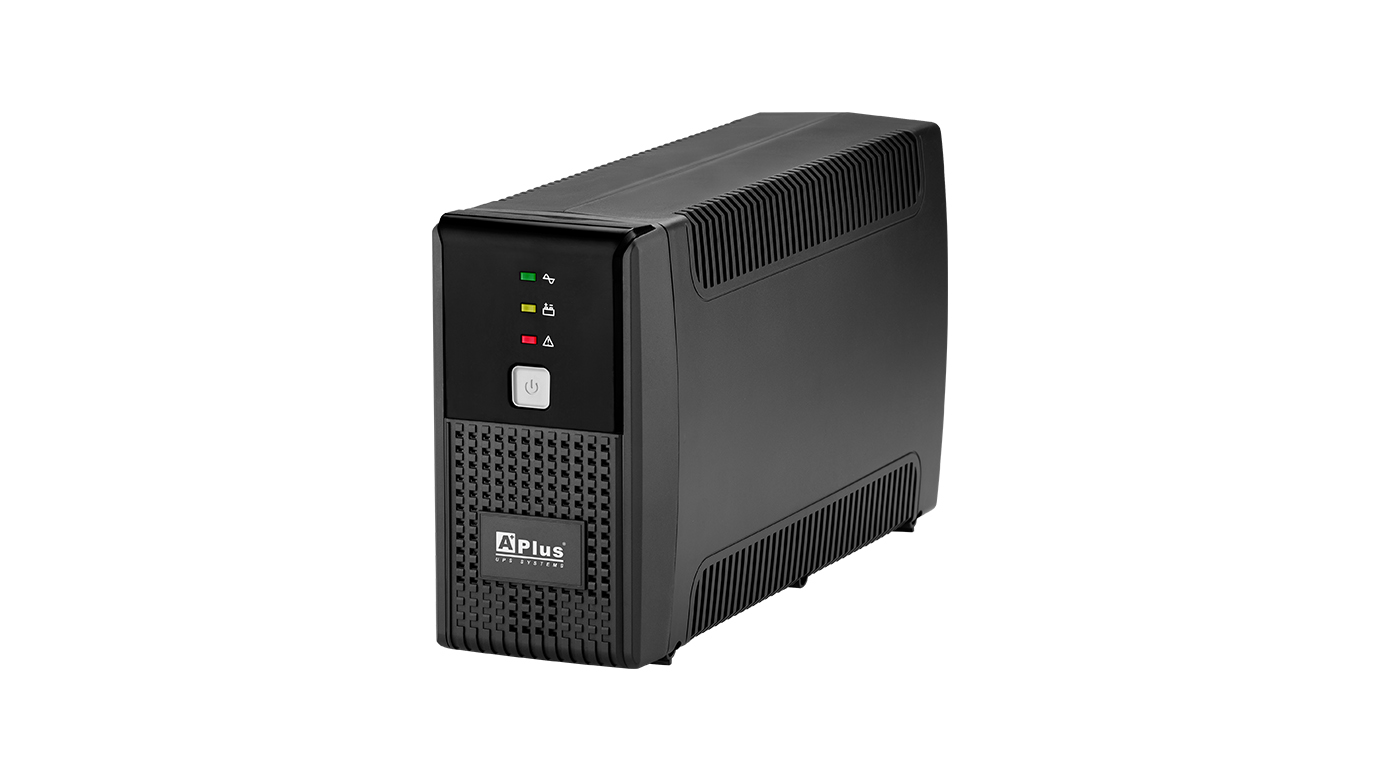

Plus1E Series
600VA to 2000VA
The Plus1E Series 600VA to 2000VA provides guaranteed battery backup power during outage and unsafe fluctuation, along with full protection from damaging surges and spikes.
Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LED indicators in a stand-alone unit, Plus1E Series UPS is the best choice to protect your data and keep you connected during utility blackout.
Featuring 600VA to 2000VA integrated with microprocessor controller, voltage stabilizer, LED indicators in a stand-alone unit, Plus1E Series UPS is the best choice to protect your data and keep you connected during utility blackout.
● UPS will shut down upon battery low ; UPS will restart automatically upon AC recovery (Auto-restart)
● Controlled by a technologically advanced microprocessor guaranteeing high reliability
● USB port and monitor software is designed to manage UPS status via PC (Optional)
● Built-in DC start function enables UPS to be started without AC power supplied
● Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
● Constant current, constant voltage battery charger (CCCV Battery Charger)
● UPS will charge itself even though power switch is off (Off mode charging)
● Provide Lightning, surge, overload, and short circuit protection
● Over / under voltage protection (UPS will go to battery mode)
● Controlled by a technologically advanced microprocessor guaranteeing high reliability
● USB port and monitor software is designed to manage UPS status via PC (Optional)
● Built-in DC start function enables UPS to be started without AC power supplied
● Equipped with 2-steps boost & 1-step buck AVR to stabilize output voltage
● Constant current, constant voltage battery charger (CCCV Battery Charger)
● UPS will charge itself even though power switch is off (Off mode charging)
● Provide Lightning, surge, overload, and short circuit protection
● Over / under voltage protection (UPS will go to battery mode)
| MODEL | Plus1E-600R4 | Plus1E-800R4 | Plus1E-1000R4 | Plus1E-1200R4 | Plus1E-1500R4 | Plus1E-2000R4 |
| Plus1E-U600R4 | Plus1E-U800R4 | Plus1E-U1000R4 | Plus1E-U1200R4 | Plus1E-U1500R4 | Plus1E-U2000R4 | |
| CAPACITY | 600VA/360W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | 2000VA/1200W |
| INPUT | ||||||
| Voltage | 220/230/240Vac | |||||
| Voltage Range | -30%, +25% | |||||
| Frequency | 50Hz or 60Hz (Auto-sensing) | |||||
| OUTPUT | ||||||
| Voltage Regulation | +/-10% | |||||
| Frequency | AC mode: 47-53Hz for 50Hz or 57-63Hz for 60Hz ; Battery mode: 50Hz or 60Hz +/-1Hz | |||||
| Waveform | Simulated Sinewave | |||||
| Transfer Time | <6ms (Typical) | |||||

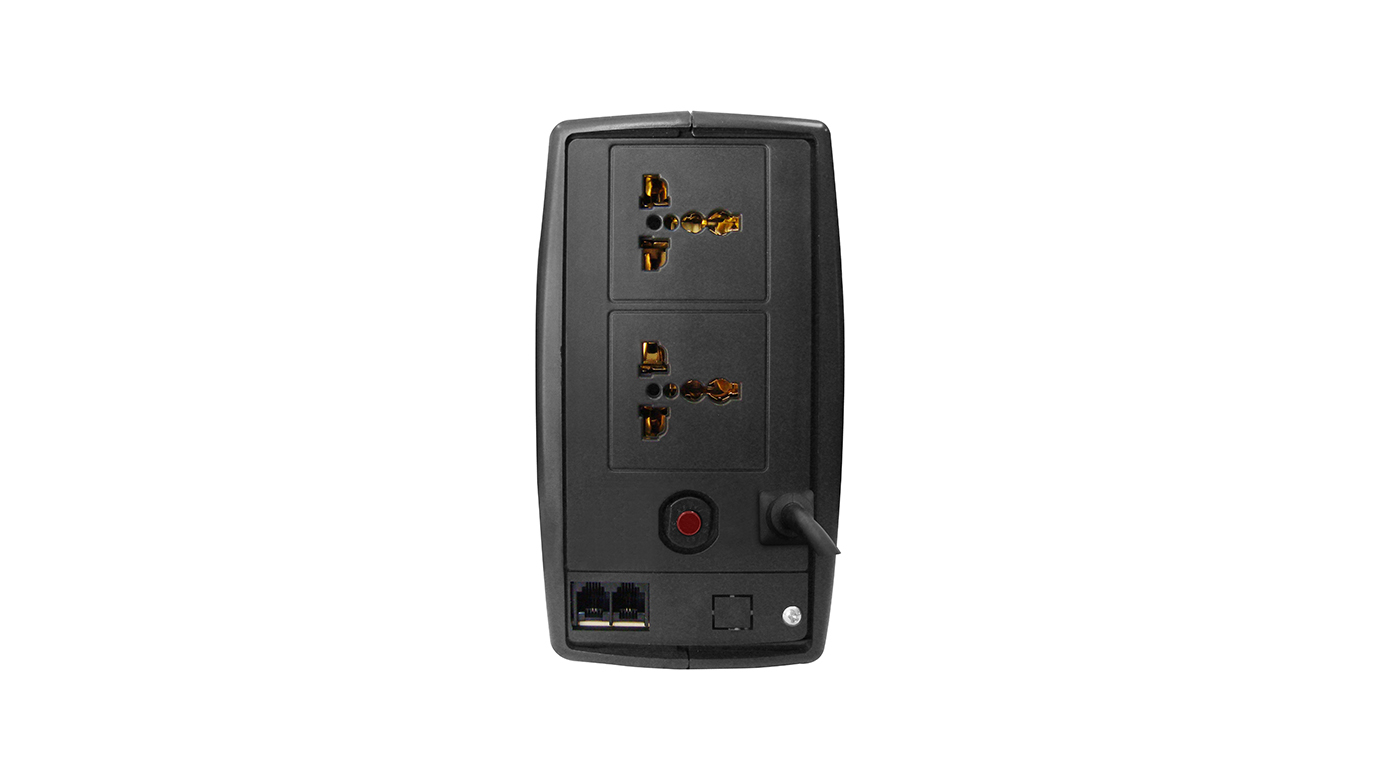

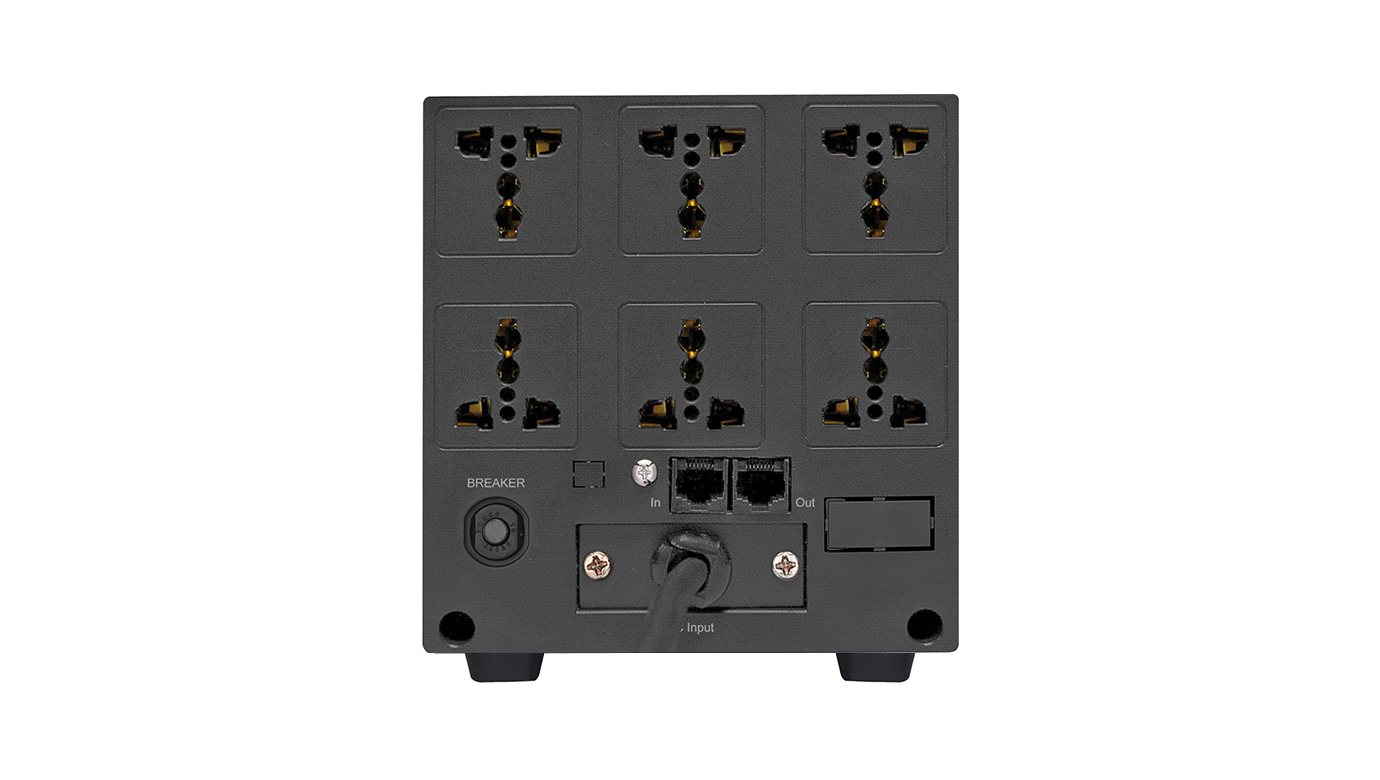

| Outlet: Universal | 2pcs backup/AVR/Surge protected | 6pcs backup/AVR/Surge protected | ||||
| BATTERY | ||||||
| Type | Maintenance free sealed lead-acid battery | |||||
| Voltage | 12VDC | 24VDC | ||||
| Capacity & Number | 12V/7AH*1pc | 12V/9AH*1pc | 12V/7AH*2pcs | 12V/7AH*2pcs | 12V/9AH*2pcs | 12V/9AH*2pcs |
| Recharge Time | 5 hours to 90% after complete discharge | |||||
| Safety Protection | Over Charge & Over Discharge Protection | |||||
| Advanced Battery Management | Yes | |||||
| DISPLAY | ||||||
| LED Indicators | AC Normal (Green), Battery backup (Yellow), UPS cut off / Fault (Red) | |||||
| AUDIBLE ALARM | ||||||
| Battery Mode | Two short tones every 8 seconds | |||||
| Low Battery | Four short tones every second | |||||
| Overload | Beeping continuously | |||||
| Fault | Beeping continuously | |||||
| MANAGEMENT | ||||||
| USB Communication Port | Plus1E series: N/A | |||||
| Plus1E-U series: Yes, and download software is inlcuded. Monitoring software can support Microsoft Windows 2000/XP/Vista/7/8/10, Server 2003/2008/2012, Novell NetWare v3.1x/v4.x/v5.x, Linux, FreeBSD, MacOSX10.5.5 | ||||||
| ENVIRONMENT | ||||||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |||||
| Humidity | 0-95% (Non-condensing) | |||||
| Acousitc Noise | <40dB at 1M | |||||
| PHYSICAL | ||||||
| Dimension (D*W*H) | 305*98*170mm | 385*98*170mm | 360*150*160mm | |||
| MODEL NAME | POWER RATING | MODEL FORMAT | INDICATORS | USB COMMUNICATION PORT | SOCKET TYPE |
| Plus1E-600R4 | 600VA/360W | Tower Type | LED | N/A | Universal Socket |
| Plus1E-U600R4 | 600VA/360W | Tower Type | LED | YES | Universal Socket |
| Plus1E-800R4 | 800VA/480W | Tower Type | LED | N/A | Universal Socket |
| Plus1E-U800R4 | 800VA/480W | Tower Type | LED | YES | Universal Socket |
| Plus1E-1000R4 | 1000VA/600W | Tower Type | LED | N/A | Universal Socket |
| Plus1E-U1000R4 | 1000VA/600W | Tower Type | LED | YES | Universal Socket |
| Plus1E-1200R4 | 1200VA/720W | Tower Type | LED | N/A | Universal Socket |
| Plus1E-U1200R4 | 1200VA/720W | Tower Type | LED | YES | Universal Socket |
| Plus1E-1500R4 | 1500VA/900W | Tower Type | LED | N/A | Universal Socket |
| Plus1E-U1500R4 | 1500VA/900W | Tower Type | LED | YES | Universal Socket |
| Plus1E-2000R4 | 2000VA/1200W | Tower Type | LED | N/A | Universal Socket |
| Plus1E-U2000R4 | 2000VA/1200W | Tower Type | LED | YES | Universal Socket |
*The capacity of connected loading do not exceed the capacity of UPS.
