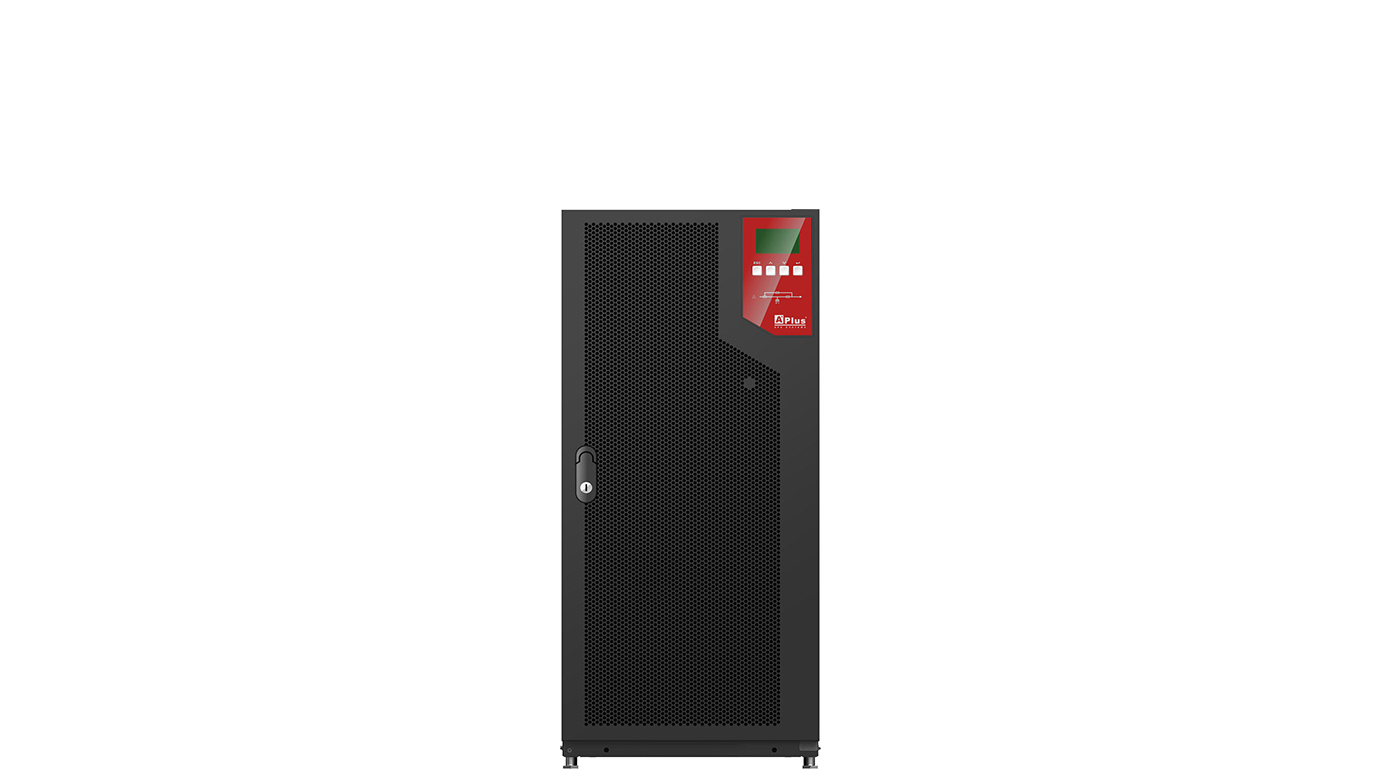

PlusMAX 1 Series
20KVA to 40KVA
The PlusMAX 1 Series 20KVA to 40KVA UPS is high-frequency pure online products with excellent performance that provide double conversion, and three-phase input and output.
With perfect power source protection solutions, the UPS effectively address multiple power source problems such as power outage, high-voltage AC and low voltage AC, voltage sag, damped oscillation, high voltage impulse, voltage surge, harmonic distortion, clutter interference and frequency variation. It is ideal for the governments and a range of industries including telecommunications, financing, transportation, manufacturing and energy.
With perfect power source protection solutions, the UPS effectively address multiple power source problems such as power outage, high-voltage AC and low voltage AC, voltage sag, damped oscillation, high voltage impulse, voltage surge, harmonic distortion, clutter interference and frequency variation. It is ideal for the governments and a range of industries including telecommunications, financing, transportation, manufacturing and energy.
● Parallel up to 4
● Compact footprint
● High frequency design
● Output power factor 0.9
● Adjustable battery quantity
● Intelligent battery management
● Double conversion on-line topology
● Efficiency up to 94% in inverter mode
● Enhanced environmental adaptability design
● Compact footprint
● High frequency design
● Output power factor 0.9
● Adjustable battery quantity
● Intelligent battery management
● Double conversion on-line topology
● Efficiency up to 94% in inverter mode
● Enhanced environmental adaptability design
| MODEL | PlusMAX 1-20KS | PlusMAX 1-30KS | PlusMAX 1-40KS |
| CAPACITY | |||
| Power Rating KVA | 20 | 30 | 40 |
| Power Rating KW | 18 | 27 | 36 |
| INPUT | |||
| Topology | PWM, IGBT based | ||
| Rated Voltage | 380Vac/220Vac (400/415Vac selectable) | ||
| Voltage Range | -45% ~ +25%, depends on load percentage | ||
| Input Power Factor | 0.99 | ||
| THD(i) | <3% | ||
| Rated Frequency | 50/60Hz (Auto-sensing) | ||
| Frequency Range | 42-72Hz | ||
| OUTPUT | |||
| Power Factor | 0.9 | ||
| Efficiency | Up to 94% in online mode ; >98% in ECO mode | ||
| Output Voltage | 380Vac/220Vac +/-1% (400/415Vac selectable) | ||
| Output Frequency | 50/60Hz | ||
| Overload Capacity | <105% continuous run ; 105%-125% 10min ; 150% 1min | ||
| THDV | <2% for Linear load | ||
| Unbalanced Load | 100% | ||
| Crest Factor | 3:1 | ||
| BYPASS | |||
| Internal Static Switch | Standard | ||
| Bypass Voltage | 380Vac (+/-15%) | ||
| Maintenance Bypass Switch | Standard | ||
| BATTERY | |||
| Battery Type | VRLA | ||
| Backup Time | Varies from battery capacity and load situation | ||
| Battery PCS | 20KS/30KS/40KS: 28-36 PCS adjustable, 32 PCS as default | ||
| Recharge Time | 8 hours to 90% | ||
| COMMUNICATION | |||
| Interface | RS232, USB, 2 Com slots, 3 Building alarm, EPO | ||
| Com Cards (Optional) | SNMP/WEB, Modbus/Ethernet, AS400, NMC | ||
| ENVIRONMENT | |||
| Running Temperature | UPS: 0-40°C ; Battery: 25°C | ||
| Storage | -25 ~ 55°C without battery ; +15 ~ 25°C with battery | ||
| Humidity | 5% ~ 95% | ||
| Elevation | No derating <1000m | ||
| Noise Level | 20kVA ≤ 55 dBA@1 meter front side ; 30-40kVA ≤ 62 dBA@1 meter front side ; 60-120kVA ≤ 65 dBA@1 meter front side ; 160-200kVA ≤ 70 dBA@1 meter front side |
||
| DIMENSION | |||
| W*D*H (mm) | 420*715*900 | ||
| REGULATION | |||
| Safety | IEC/EN 62040-1 | ||
| EMC | IEC/EN 62040-2 | ||
| Performance | IEC/EN 62040-4 | ||
| Quality | ISO9001 | ||
| Certification | CE | ||
*The capacity of connected loading do not exceed the capacity of UPS.
