PlusModule 3 Series
200KVA to 600KVA (380/220V)
The PlusModule 3 Series is modular online double conversion UPS ranging 200KVA to 600KVA. The system intelligently control the whole process of the charging and discharging, effectively improving the life time of the battery.

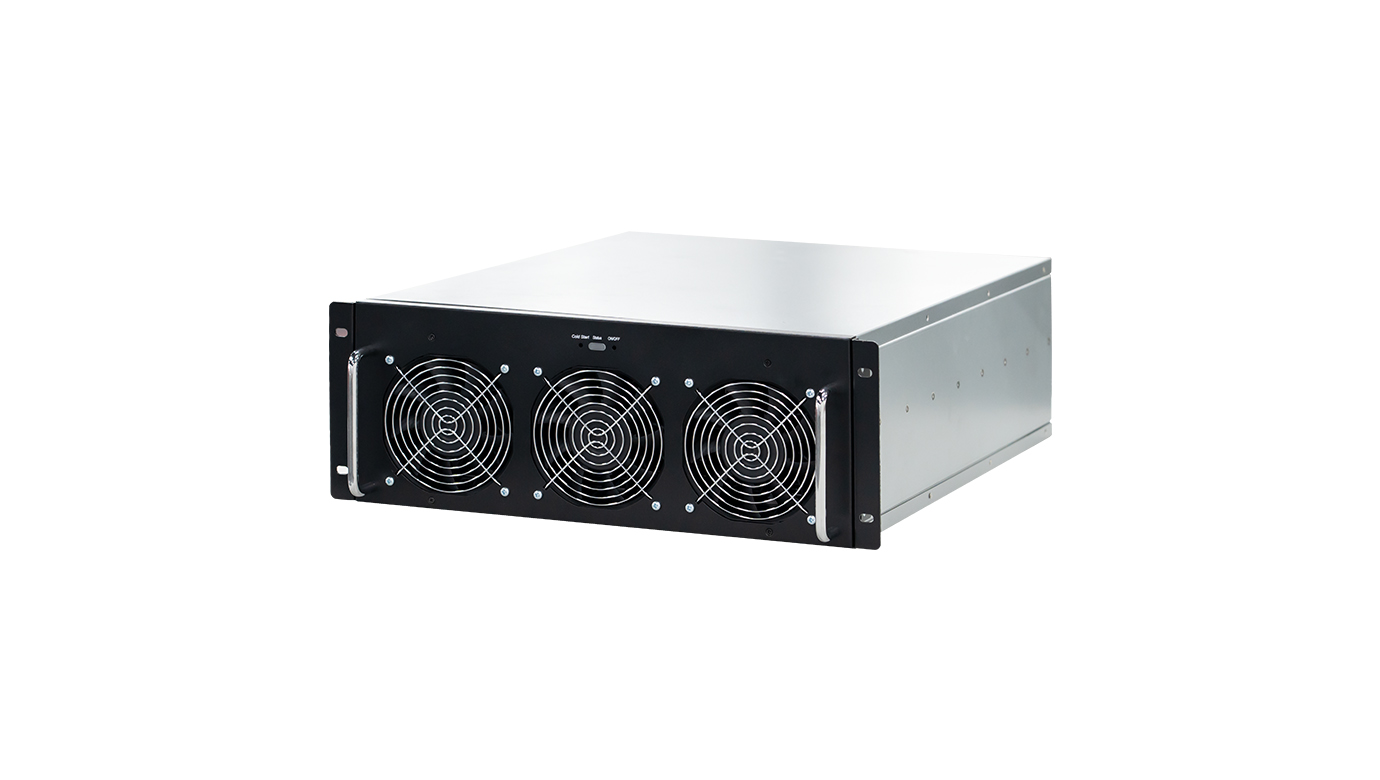

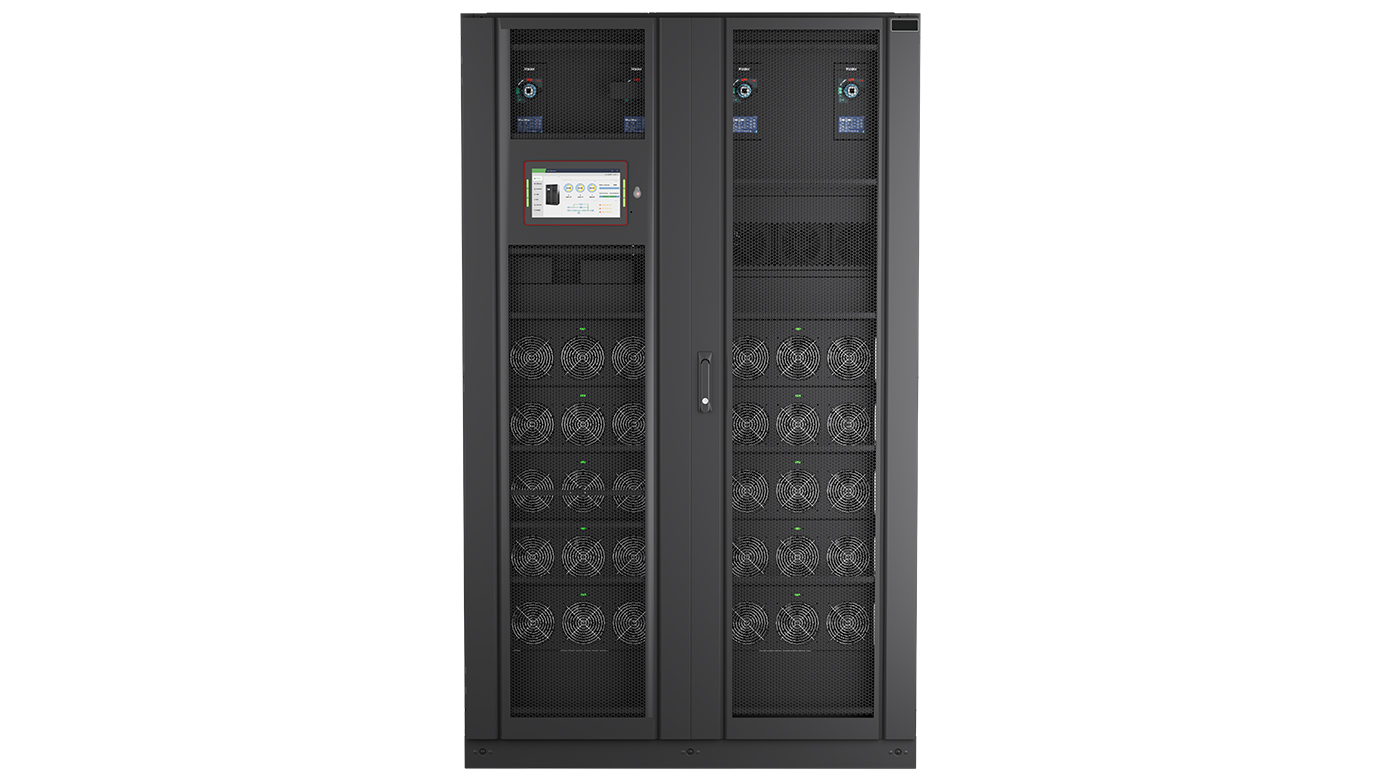

Modular design, compatible with 19” standard rack cabinet, convenient to be integrated into server cabinet. The UPS system with high reliability and environment adaptability that offers excellent choice for data center.
●  Fully digital control, flexible and robust.
●  7 & 10 inch touch LCD, with IoT functions.
●  Maximum system capacity up to 1.8MVA, the best solution for mega data center.
●  High reliability and environment adaptability, with protection of components level.
●  Intelligent system self-diagnosis, rich fault recording, large capacity of history record storage space.
MODEL PlusModule 3-200/50X PlusModule 3-240/60X PlusModule 3-300/50X PlusModule 3-360/60X PlusModule 3-400/50X PlusModule 3-480/60X PlusModule 3-600/50X PlusModule 3-600/60X
Rate Power 200kVA 240kVA 300kVA 360kVA 400kVA 480kVA 600kVA 600kVA
MAIN INPUT
Input 3P5W (3P+N+PE)
Rate Voltage 380/400/415VAC(L-L); 220/230/240VAC(L-N)
Rate Freq. 50/60Hz
Input PF >0.99
Current Distortion THDi<3% (100% Linear load)
Voltage Range 304~478VAC(L-L)full load; 304~228VAC (L-L) power derate from 100% to 75%
Freq. Range 40-70Hz
BATTERY
Rate Voltage ±240VDC
Charging Capacity 20%*Pout
Charging Accuracy ±1%
BYPASS
Rate Voltage 380/400/415VAC(L-L)220/230/240VAC(L-N)
Voltage Range Range: -40%~+25%, Settable, default -20%~+15%
Overload 125%, long time operation
125%
130%
>150%, 300ms		 110%, long time operation
110%
125%
>150%,1 second
INVERTER
Rate Voltage 380/400/415VAC(L-L); 220/230/240VAC(L-N)
Rate Freq. 50/60Hz
Output PF 1
Voltage Accuracy ±1.0%
Load Response <5% (20% - 80% -20% step load)
Recovery Time <20ms (0% - 100% -0% step load)
Output THDu <1% (linear load), <5% (non-linear load according to IEC 62040-3)
Overload 110%, 1 hour; 125%,10 mins; 150%,1 min; >150%, 200ms
Frequency Accuracy 0.1%
Synchronize Window Settable, ±0.5Hz-±5Hz, default ±3Hz
Slew Rate Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S
Phase Accuracy 120°±0.5°
SYSTEM
Efficiency Normal Mode ≥96%, Battery Mode ≥96%
Display LED + 7 inch touch LCD LED + 10 inch touch LCD
Certification-Safety IEC62040-1, IEC60950-1
Certification-EMS IEC62040-2; IEC61000-4-2(ESD); IEC61000-4-3(RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge)
IP Degree IP20
Configuration USB, RS232, RS485, Dry contact, Cold start, Air filter
Option SNMP card / AS400 card / Parallel kit / SPD / LBS
Environment 0-40°C(Operation); -25°C~70°C(Storage); 0-95%(Humidity, Non-condensing)
Noise(dB)(1 meter) 72dB @ 100% load, 69dB @ 45% load
DIMENSION
Cabinet(W*D*H)mm 600*1000*1600 600*1000*2000 1200*1100*2000
Module(W*D*H)mm 442*659*174
WEIGHT(kg)
Cabinet 185 248 250 578
Module 41
Power Module Rated Capacity 50KW 60KW 50KW 60KW 50KW 60KW 50KW 60KW
*Product specifications are subject to change without further notice.
