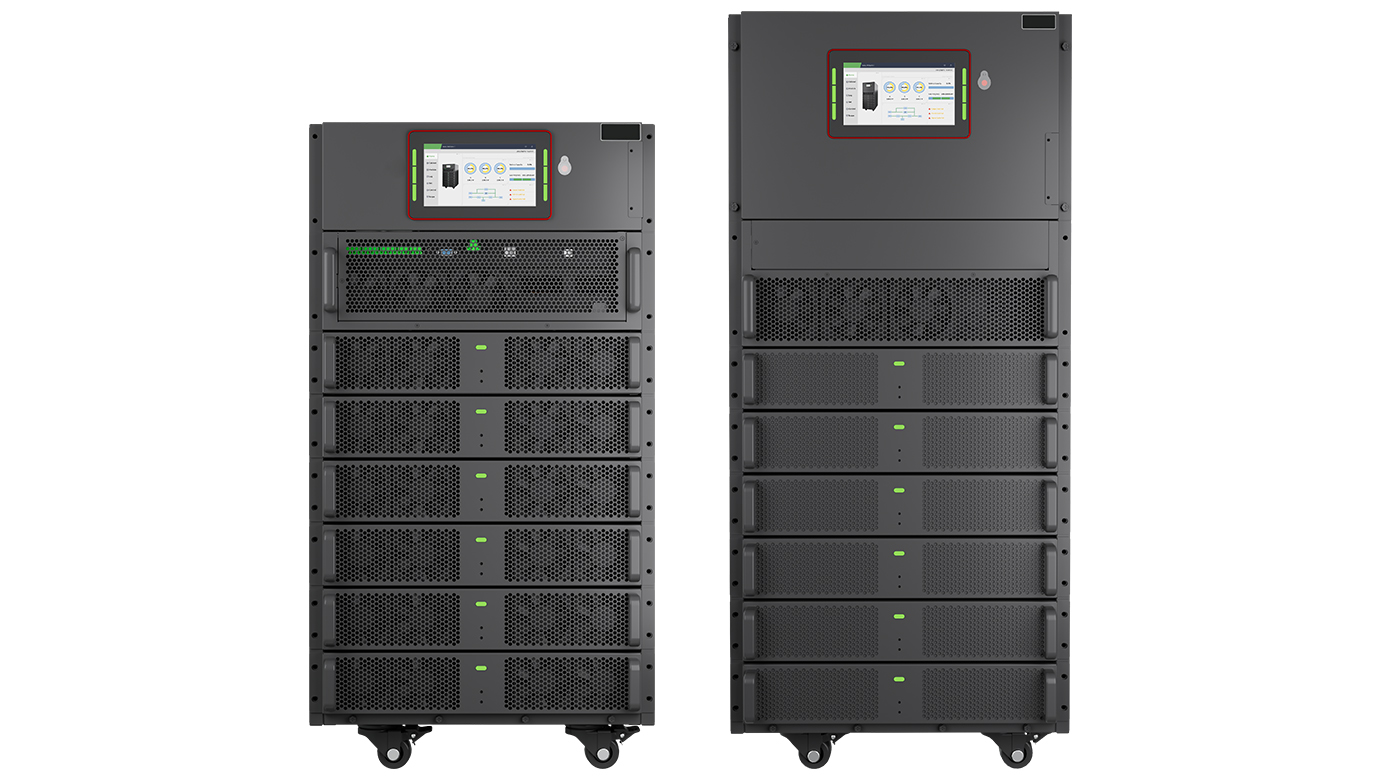

PlusModule 1 Series
72KVA & 108KVA (208/120V)
The PlusModule 1 Series is modular online double conversion UPS ranging 72KVA and 108KVA. The system intelligently control the whole process of the charging and discharging, effectively improving the life time of the battery.
Modular design, compatible with 19” standard rack cabinet, convenient to be integrated into server cabinet. The UPS system with high reliability and environment adaptability that offers excellent choice for data center.
Modular design, compatible with 19” standard rack cabinet, convenient to be integrated into server cabinet. The UPS system with high reliability and environment adaptability that offers excellent choice for data center.
● High reliability and environment adaptability, with protection of components level.
● Extreme high power density, 12kW or 18kW in 2U, friendly for space and maintenance.
● Option of 30A charger module for long backup applications.
● Mounted in 19 inch rack, or stand alone.
● 7 inch touch LCD, with IoT functions.
● Extreme high power density, 12kW or 18kW in 2U, friendly for space and maintenance.
● Option of 30A charger module for long backup applications.
● Mounted in 19 inch rack, or stand alone.
● 7 inch touch LCD, with IoT functions.
| MODEL | PlusModule 1-72/12X | PlusModule 1-108/18X |
| Rate Power | 72kVA/72kW | 108kVA/108kW |
| MAIN INPUT | ||
| Input | 3P5W (3P+N+PE) | |
| Rate Voltage | 200/208/220VAC (Line-Line) | |
| Rate Freq. | 50/60Hz | |
| Input PF | >0.99 | |
| Current Distortion | THDi <3% (100% Linear load) | |
| Voltage Range | 166~261VAC(L-L) full load; 125~166VAC(L-L) load decrease linearly according to the min phase voltage | |
| Freq. Range | 40-70Hz | |
| BATTERY | ||
| Rate Voltage | ±120VDC | |
| Charging Capacity | 20%*Pout | |
| Charging Accuracy | ±1% | |
| BYPASS | ||
| Rate Voltage | 200/208/220VAC (Line-Line) | |
| Voltage Range | Range: -40%~+25%, Settable, default -20%~+15% | |
| Overload | 110%, long time operation; 110%< load<125%, 5 mins; 125% |
|
| INVERTER | ||
| Rate Voltage | 200/208/220VAC (Line-Line) | |
| Rate Freq. | 50/60Hz | |
| Output PF | 1 | |
| Voltage Accuracy | ±1.0% | |
| Load Response | <5% (20% - 80% -20% step load) | |
| Recovery Time | <20ms (0% - 100% -0% step load) | |
| Output THDu | <1% (linear load), <5% (non-linear load according to IEC 62040-3) | |
| Overload | 110%, 1 hour; 125%, 10 mins; 150%, 1 min; >150%, 200ms | |
| Frequency Accuracy | 0.1% | |
| Synchronize Window | Settable, ±0.5Hz-±5Hz, default ±3Hz | |
| Slew Rate | Settable, 0.5Hz/S-3Hz/S, default 0.5Hz/S | |
| Phase Accuracy | 120°±0.5° | |
| SYSTEM | ||
| Efficiency | Normal Mode ≥93%; Battery Mode ≥93% | |
| Display | LED + 7 inch touch LCD | |
| Certification-Safety | IEC62040-1, IEC60950-1 | |
| Certification-EMS | IEC62040-2; IEC61000-4-2(ESD); IEC61000-4-3(RS); IEC61000-4-4(EFT); IEC61000-4-5(Surge) | |
| IP Degree | IP20 | |
| Configuration | USB, RS232, RS485, Dry contact, Cold start | |
| Option | SNMP card / AS400 card / Parallel kit / LBS / Air filter | |
| Environment | 0-40°C(Operation); -25°C~70°C(Storage); 0-95%(Humidity, Non-condensing) | |
| Noise(dB)(1 meter) | 65dB @ 100% load, 62dB @ 45% load | |
| DIMENSION | ||

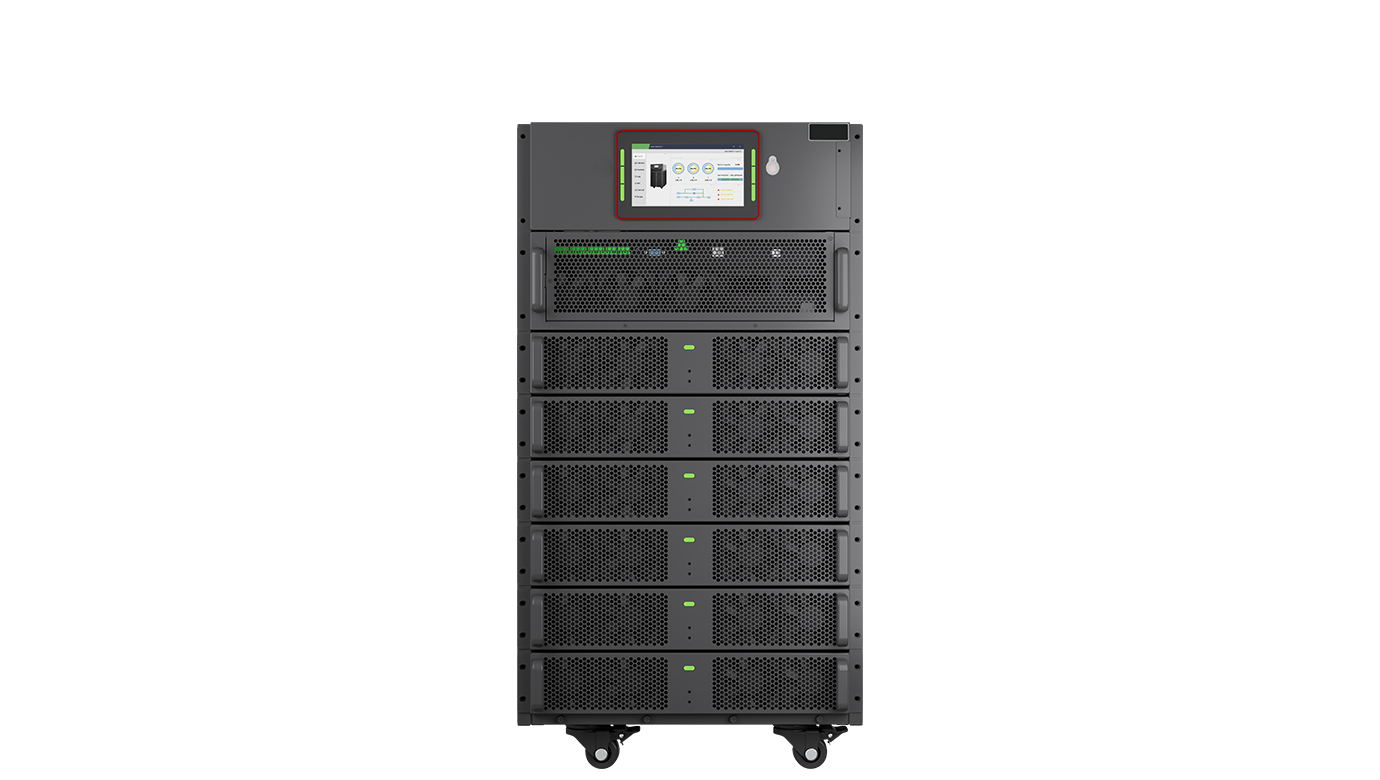

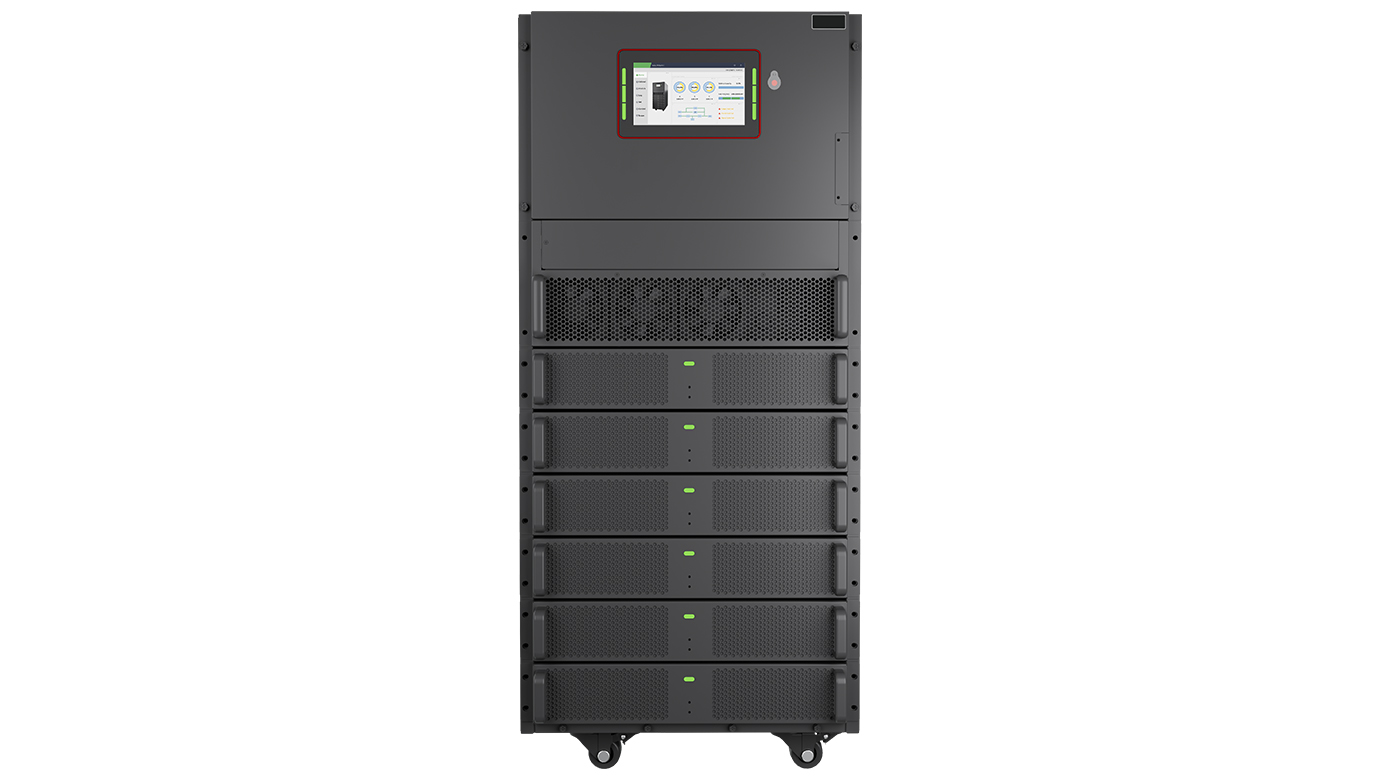

| Cabinet(W*D*H)mm | 482*700*840 (19U, wheels not included) | 482*816*1018 (23U, wheels not included) |
| Module(W*D*H)mm | 440*555*85 (2U) | 440*678*85 (2U) |
| Power Module Rated Capacity | 12kW | 18kW |
| Number of Power Module installation | 1 to 6 units | |
