PlusMAX 4 Series
10KVA to 80KVA (380/220V)
Internal Battery Model
Internal Battery Model
The PlusMAX 4 Series 10KVA to 80KVA UPS is high-frequency pure online products with excellent performance that provide double conversion, and three-phase input and output.
With perfect power source protection solutions, the UPS effectively address multiple power source problems. It is ideal for the governments and a range of industries including telecommunications, financing, transportation, manufacturing and energy.
With perfect power source protection solutions, the UPS effectively address multiple power source problems. It is ideal for the governments and a range of industries including telecommunications, financing, transportation, manufacturing and energy.

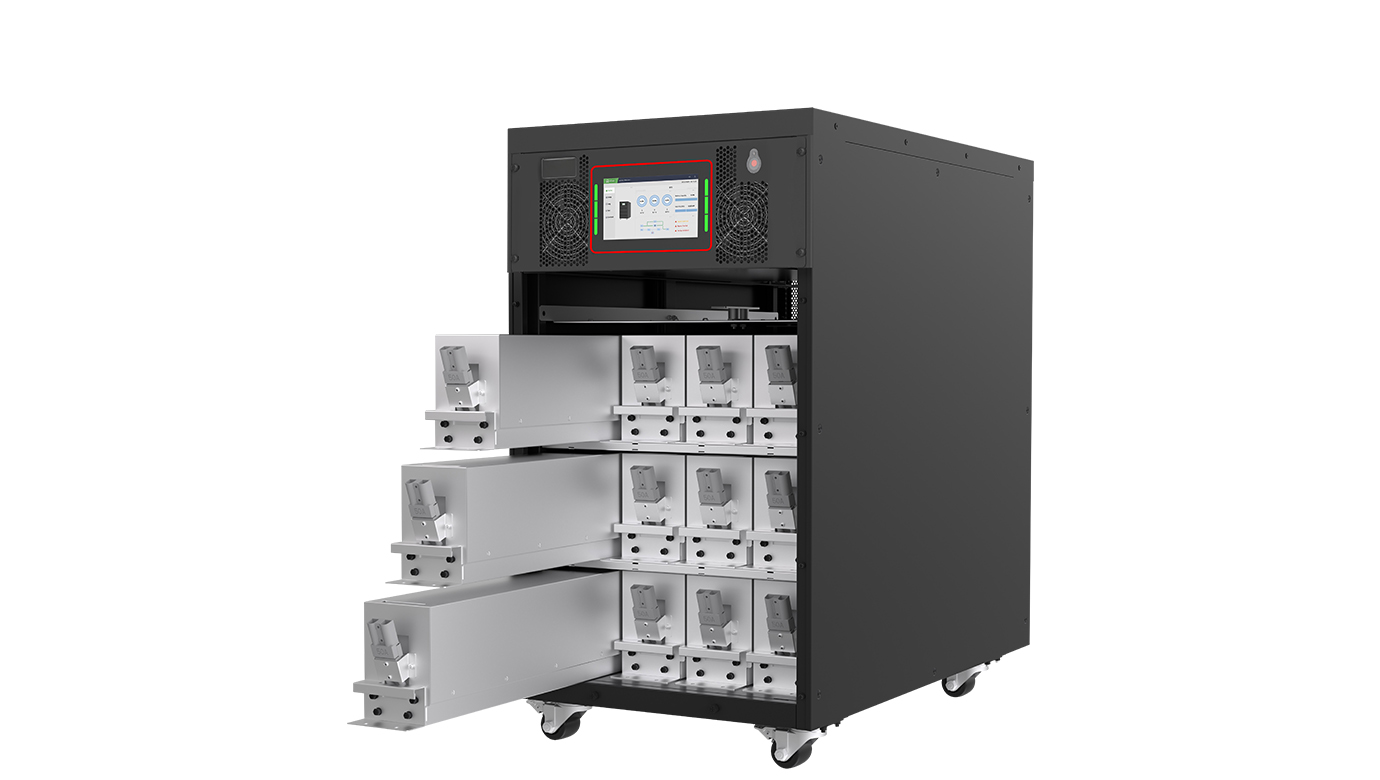

● Optional full metal battery strips, with internal batteries capable of configuring up to 16 battery module strips.
● High reliability and environment adaptability.

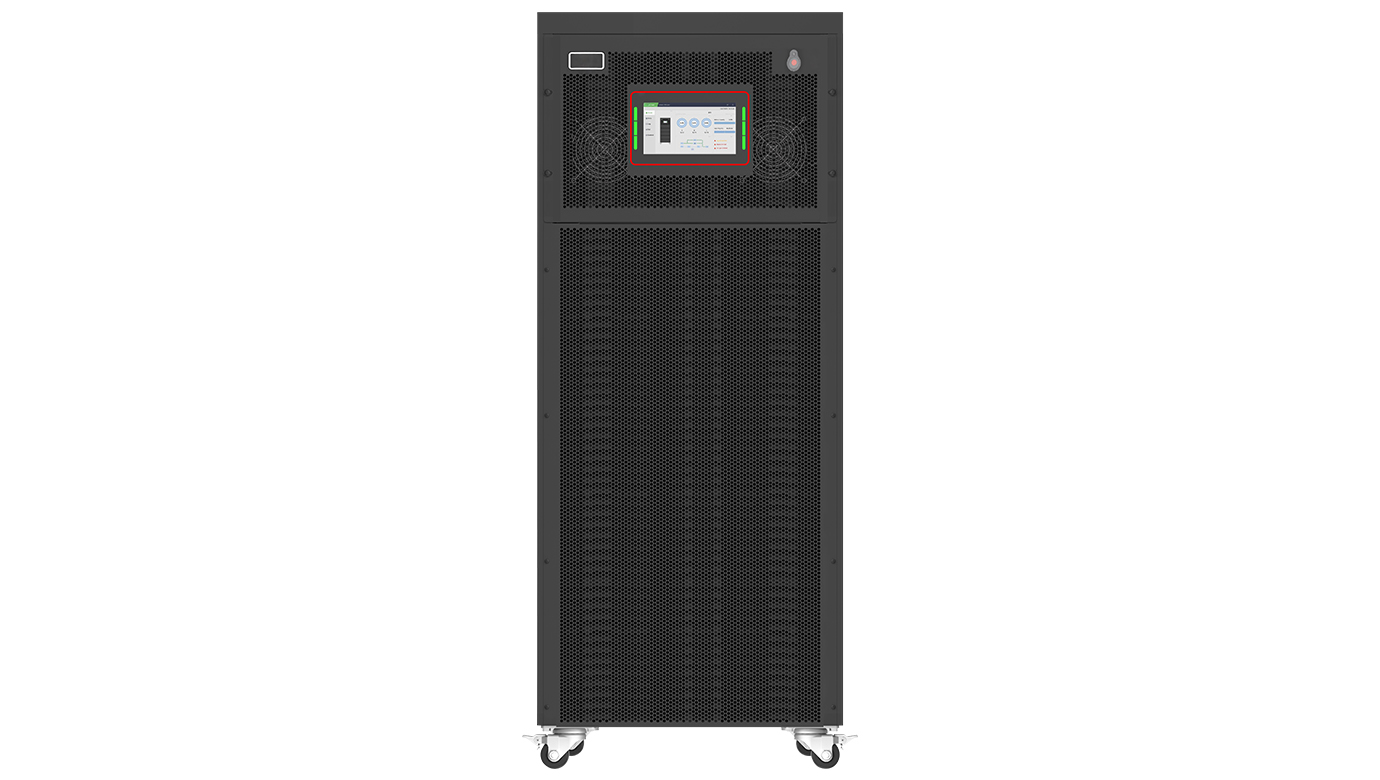

● 7 inch touch LCD with IoT functions.
● High power density, small volume.
● High Frequency Design.
● High reliability and environment adaptability.
● 7 inch touch LCD with IoT functions.
● High power density, small volume.
● High Frequency Design.
| MODEL | PlusMAX 4-10KS | PlusMAX 4-15KS | PlusMAX 4-20KS | PlusMAX 4-30KS | PlusMAX 4-40KS | PlusMAX 4-60KS | PlusMAX 4-80KS |
| Rate Power | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA |
| MAIN INPUT | |||||||
| Input | 3P5W (3P+N+PE) | ||||||
| Rate Voltage | 380/400/415Vac (L-L); 220/230/240Vac (L-N) | ||||||
| Rate Freq. | 50/60Hz | ||||||
| Input PF | >0.99 | ||||||
| Current Distortion | THDi<3% (100% Linear load) | ||||||
| Voltage Range | 304~478Vac (L-L) Full load; 304~228Vac (L-L) Power derate from 100% to 75% | ||||||
| Freq. Range | 40-70Hz | ||||||
| BATTERY | |||||||
| Rate Voltage | ±240VDC | ||||||
| Model | 12VDC/7~9Ah | ||||||
| Quantity | 120pcs |
160pcs |
|||||
| Charging Capacity | 20%*Pout | ||||||
| Charging Accuracy | ±1% | ||||||
| BYPASS | |||||||
| Rate Voltage | 380/400/415Vac (L-L); 220/230/240Vac (L-N) | ||||||
| Voltage Range | Range: -40%~+25%, Settable, default -20%~+15% | ||||||
| Frequency Range | 50/60Hz, Settable: ±1Hz, ±3Hz, ±5Hz | ||||||
| INVERTER | |||||||
| Rate Voltage | 380/400/415Vac (L-L); 220/230/240Vac (L-N) | ||||||
| Rate Freq. | 50/60Hz | ||||||
| Output PF | 1 | ||||||
| Voltage Accuracy | ±1.0% | ||||||
| Load Response | <5% (20% - 80% -20% step load) | ||||||
| Recovery Time | <20ms (0% - 100% -0% step load) | ||||||
| Output THDu | <1% (linear load), <5% (non-linear load according to IEC 62040-3) | ||||||
| Overload | 110%, 1 hour; 125%, 10 mins; 150%, 1 min; >150%, 200ms | ||||||
| Frequency Accuracy | 0.1% | ||||||
| Synchronize Window | Settable, ±0.5Hz~±5Hz, default ±3Hz | ||||||
| Slew Rate | Settable, 0.5Hz/S~3Hz/S, default 0.5Hz/S | ||||||
| Crest Factor | 3:1 | ||||||
| Phase Accuracy | 120°±0.5° | ||||||
| SYSTEM | |||||||
| Efficiency | Normal Mode ≥96%; Battery Mode ≥96% | ||||||
| Display | LED + 7 inch touch LCD | ||||||
| Certification - Safety | IEC62040-1, IEC60950-1 | ||||||
| Certification - EMS | IEC62040-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge) | ||||||
| IP Degree | IP20 | ||||||
| Configuration | USB, RS232, RS485, Dry contact, Air filter | ||||||
| Option | SNMP card, AS400 card, Parallel kit, LBS, Cold star | ||||||
| Environment | 0-40°C (Operation); -25°C~70°C (Storage); 0-95% (Humidity, non-condensing) | ||||||
| DIMENSION (W*D*H) mm | |||||||
| Internal BAT | 500*864*922 | 500*865*1250 | |||||
| WEIGHT (kg) | |||||||
| Internal BAT(No include batteries) | 143 | 155 | 200 | ||||
