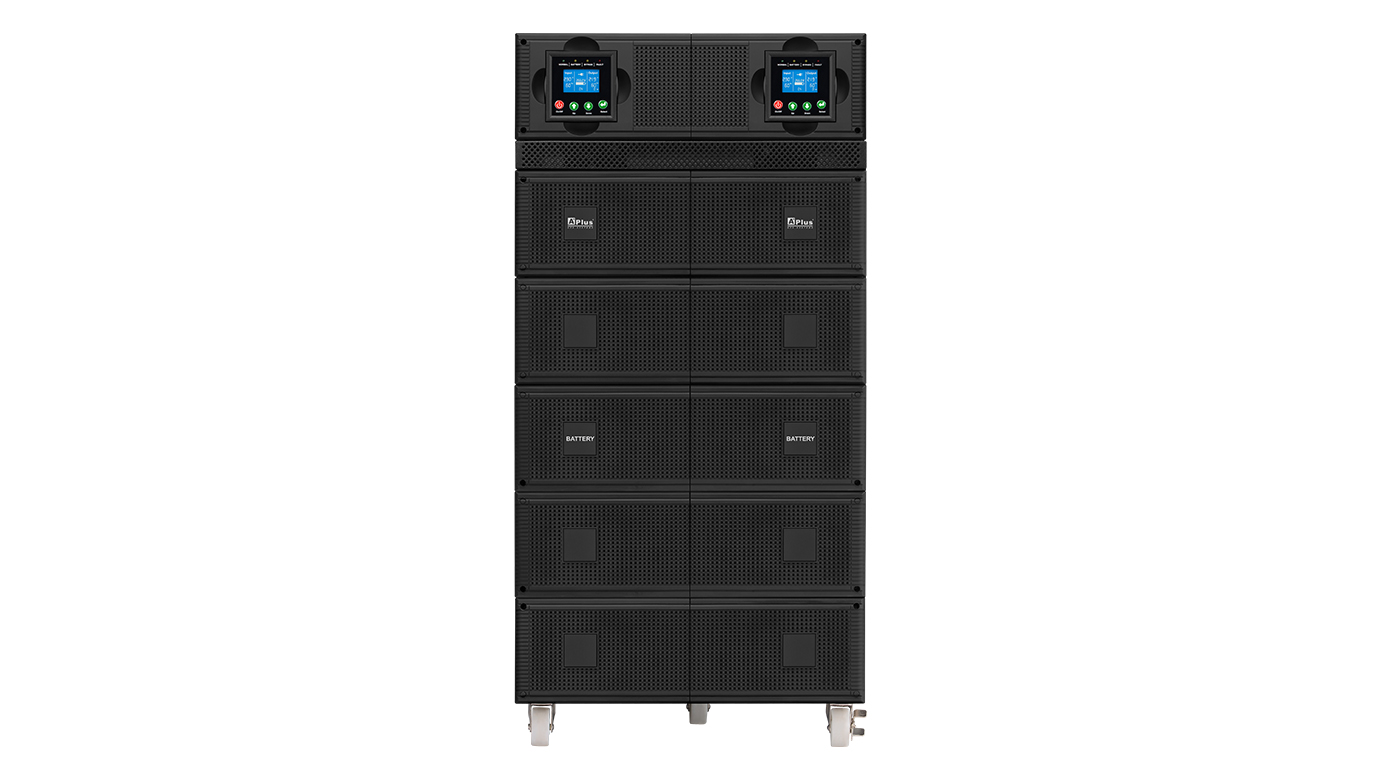

PlusPRO 3 Series Rack
20KVA
The PlusPRO 3 Series Rack 20000VA is a true double conversion online UPS, combined with 2 sets 10KVA module UPS in one to offer 20KVA power capacity. It offered with pure sinewave output, zero transfer time and enhanced capacity.
Featuring 20000VA integrated with LCD display, high output power factor 0.9, N+X parrallel redundancy, outstanding performance and optional external battery bank, PlusPRO 3 Series Rack 20000VA model stand out as high efficient online UPS during harsh mains condition for mission critical equipment in data/computer center or industrial applications.
Featuring 20000VA integrated with LCD display, high output power factor 0.9, N+X parrallel redundancy, outstanding performance and optional external battery bank, PlusPRO 3 Series Rack 20000VA model stand out as high efficient online UPS during harsh mains condition for mission critical equipment in data/computer center or industrial applications.
● High performance true double conversion Online UPS 20KVA
● N+X parallel redundancy and capacity expansion (Optional)
● External battery box to extend backup time (Optional)
● Microprocessor control guarantees high reliability
● Low heat dissipation in long time operation
● Emergency power-off function (EPO)
● Input THDi <5% / Output THD <2%
● High efficiency mode (ECO mode)
● Output voltage regulation <1%
● Automatic self-testing function
● Power management software
● Fan speed control & DC start
● Maintenance bypass switch
● Output power factor 0.9
● N+X parallel redundancy and capacity expansion (Optional)
● External battery box to extend backup time (Optional)
● Microprocessor control guarantees high reliability
● Low heat dissipation in long time operation
● Emergency power-off function (EPO)
● Input THDi <5% / Output THD <2%
● High efficiency mode (ECO mode)
● Output voltage regulation <1%
● Automatic self-testing function
● Power management software
● Fan speed control & DC start
● Maintenance bypass switch
● Output power factor 0.9
| MODEL | PlusPRO 3-20KT |
| CAPACITY | 20KVA/18KW |
| INPUT | |
| Phase | 1 Phase 2 Wires with Ground |
| Voltage | 220/230/240Vac |
| Frequency | 50Hz or 60Hz (Auto-sensing) |
| THDi | <5% with R full load |
| OUTPUT | |
| Phase | 1 Phase 2 Wires with Ground |
| Voltage | 220/230/240Vac |
| Voltage Regulation | +/-1% |
| Frequency (Battery Mode) | 50Hz or 60Hz +/-0.05Hz |
| Waveform | Pure Sinewave |
| THD | <2% (linear load), <5% (non-linear load) |
| Crest Ratio | 3 : 1 |
| EFFICIENCY | |
| To AC Mode | >92% at full load and battery fully charged |
| To Battery Mode | >92% at full load and 12VDC/battery |
| To ECO Mode | >96% at full load and battery fully charged |
| BATTERY | |
| Type | Maintenance free sealed lead-acid battery |
| Voltage | 240VDC |
| Capacity & Number | 12V/9AH*20pcs*2sets |
| Recharge Time | 7 hours to 90% |
| TRANSFER TIME | |
| Line Mode to Battery Mode | 0ms |
| Inverter to Bypass | 0ms |
| ECO Mode to Inverter | <10ms |
| DISPLAY | |
| LED Indicator | Normal (Green), Bypass (Yellow), Fault (Red), Battery (Yellow) |
| LCD Display | Load level, Battery voltage, Battery mode, AC mode, Bypass mode information |
| AUDIBLE ALARM | |
| Battery Mode | Beeps Every 4 Seconds |
| Low Battery | Sounding Every Second |
| Overload | Sounding Twice Every Second |
| Fault | Beeping continuously |
| COMMUNICATIONS | |
| Interface (Port) | USB Port (Dry Contact is optional) |
| Intelligent Slot | Yes, but SNMP card is optional |
| EPO | Emergency Power Off |
| ENVIRONMENT | |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 0-95% (Non-condensing) |
| Acousitc Noise | <50dB at 1M |
| PHYSICAL | |
| Rack Height | 19U |
| Dimension (D*W*H) | 670*440*840mm (H=900mm wheels included) |
*The capacity of connected loading do not exceed the capacity of UPS.
