PlusPRO 2 Series LV Rack/Tower
1000VA to 3000VA

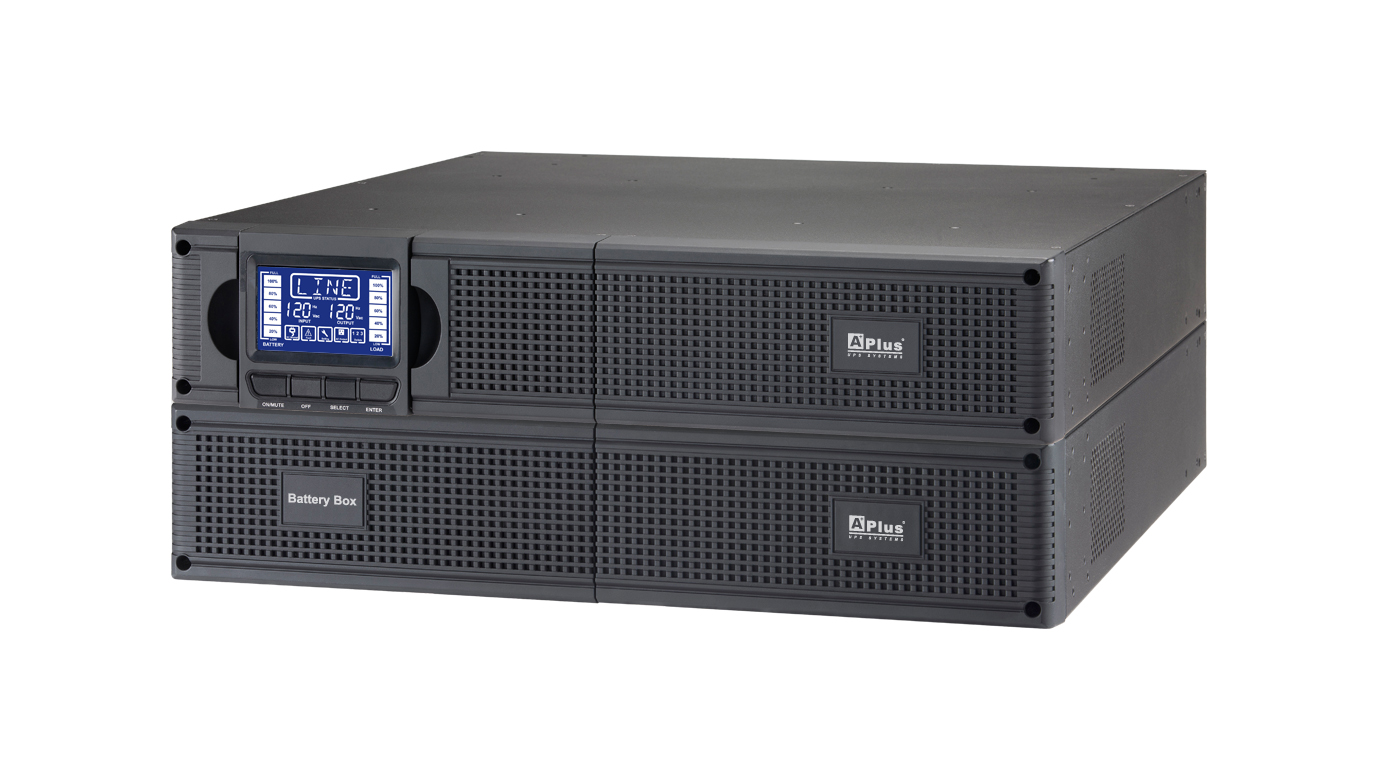

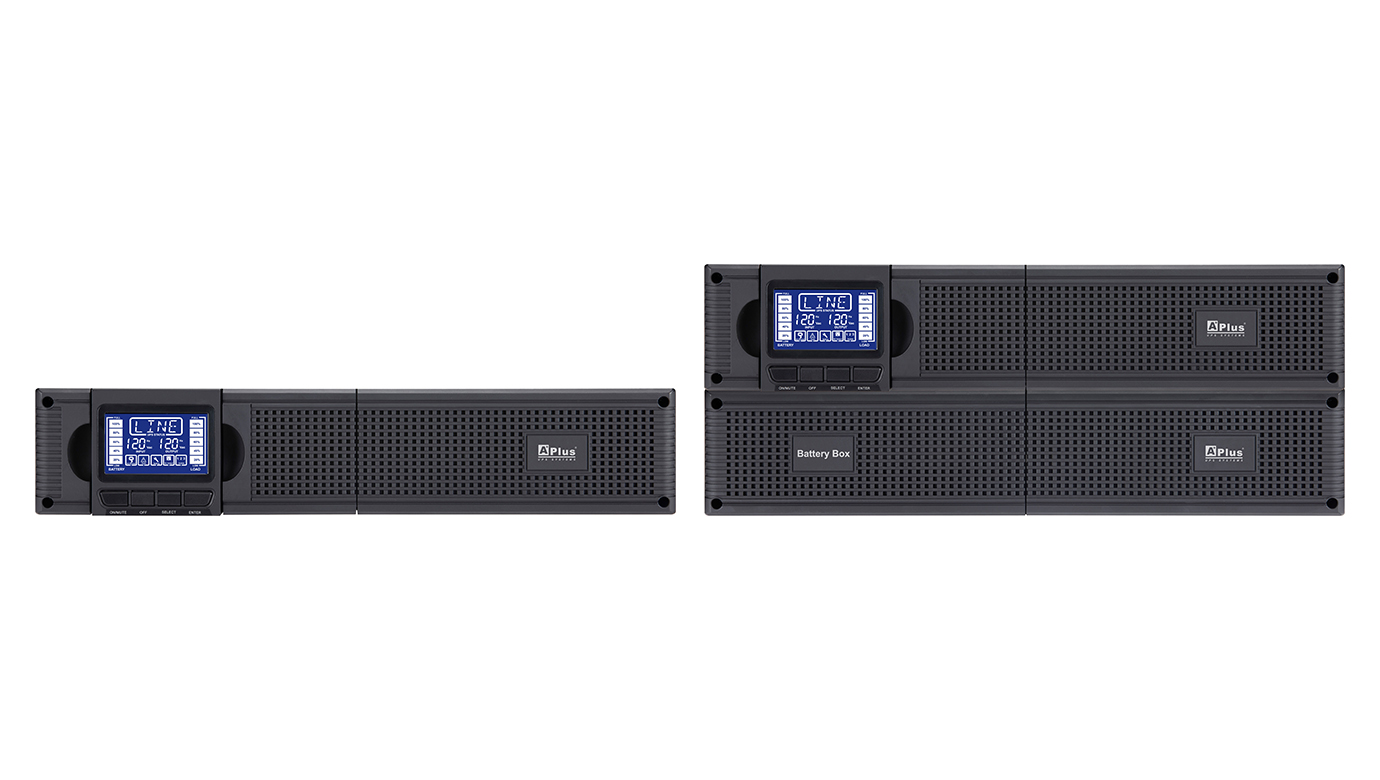

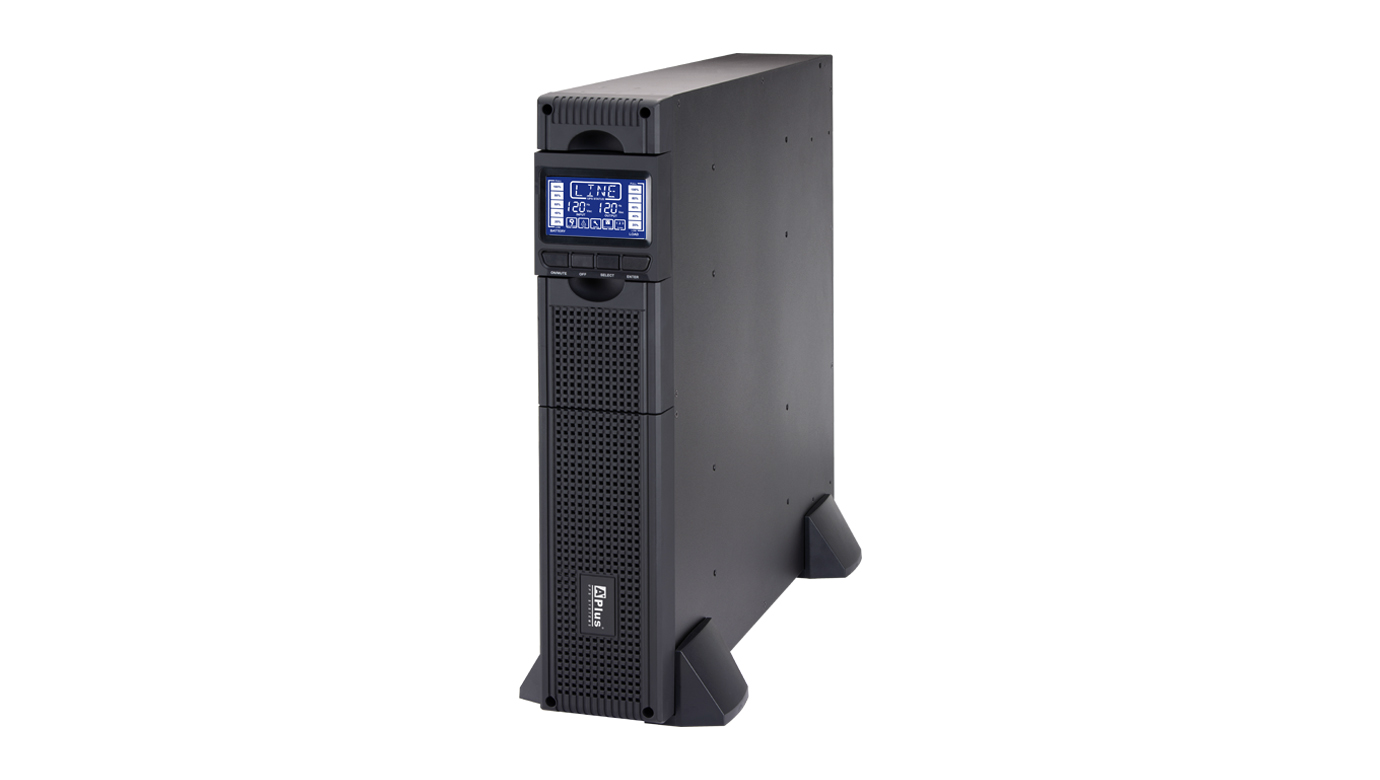

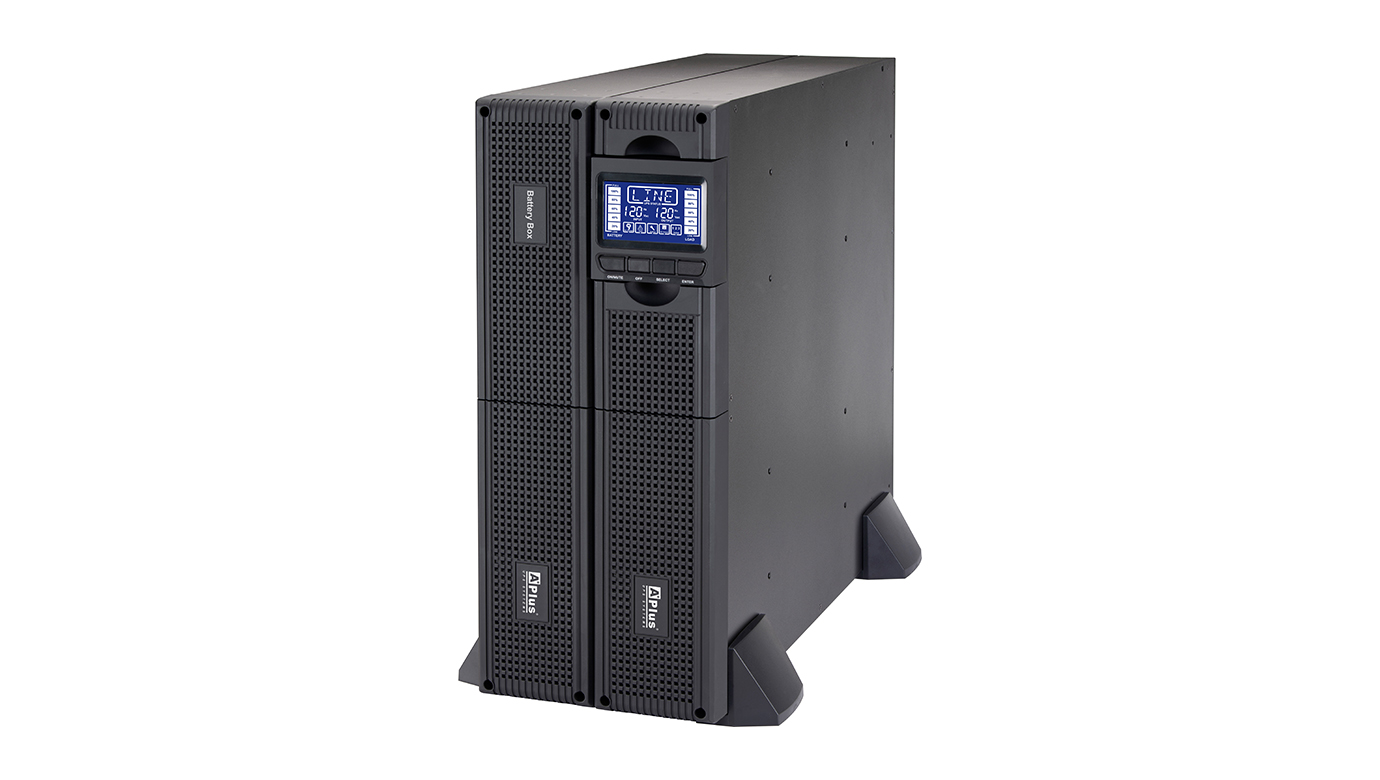

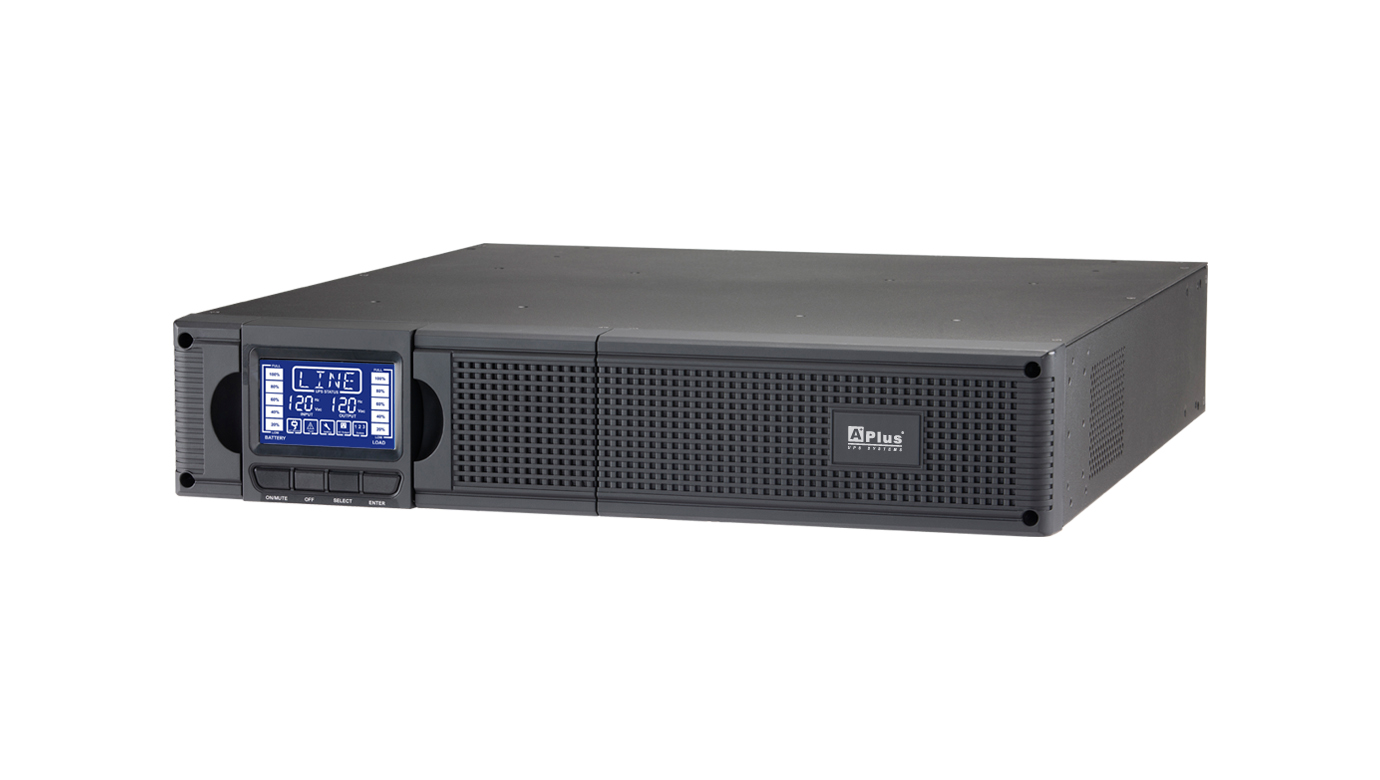

The PlusPRO 2 Series LV Rack/Tower 1000VA to 3000VA is a true double conversion online UPS with pure sinewave output and zero transfer time in a rack and tower convertible unit.
Featuring 1000VA, 3000VA configuration with wide AC input range, output power factor 0.9, LCD display, innovative Power Distribution Unit(PDU) and optional external battery bank, PlusPRO 2 Series LV Rack/Tower 1000VA to 3000VA model stand out as high efficient line of online UPS for mission critical equipment in data/computer center or industrial applications.
Featuring 1000VA, 3000VA configuration with wide AC input range, output power factor 0.9, LCD display, innovative Power Distribution Unit(PDU) and optional external battery bank, PlusPRO 2 Series LV Rack/Tower 1000VA to 3000VA model stand out as high efficient line of online UPS for mission critical equipment in data/computer center or industrial applications.
● High performance true double conversion On Line UPS 1000VA to 3000VA
● Individual Power Distribution Unit (PDU) with maintenance bypass switch

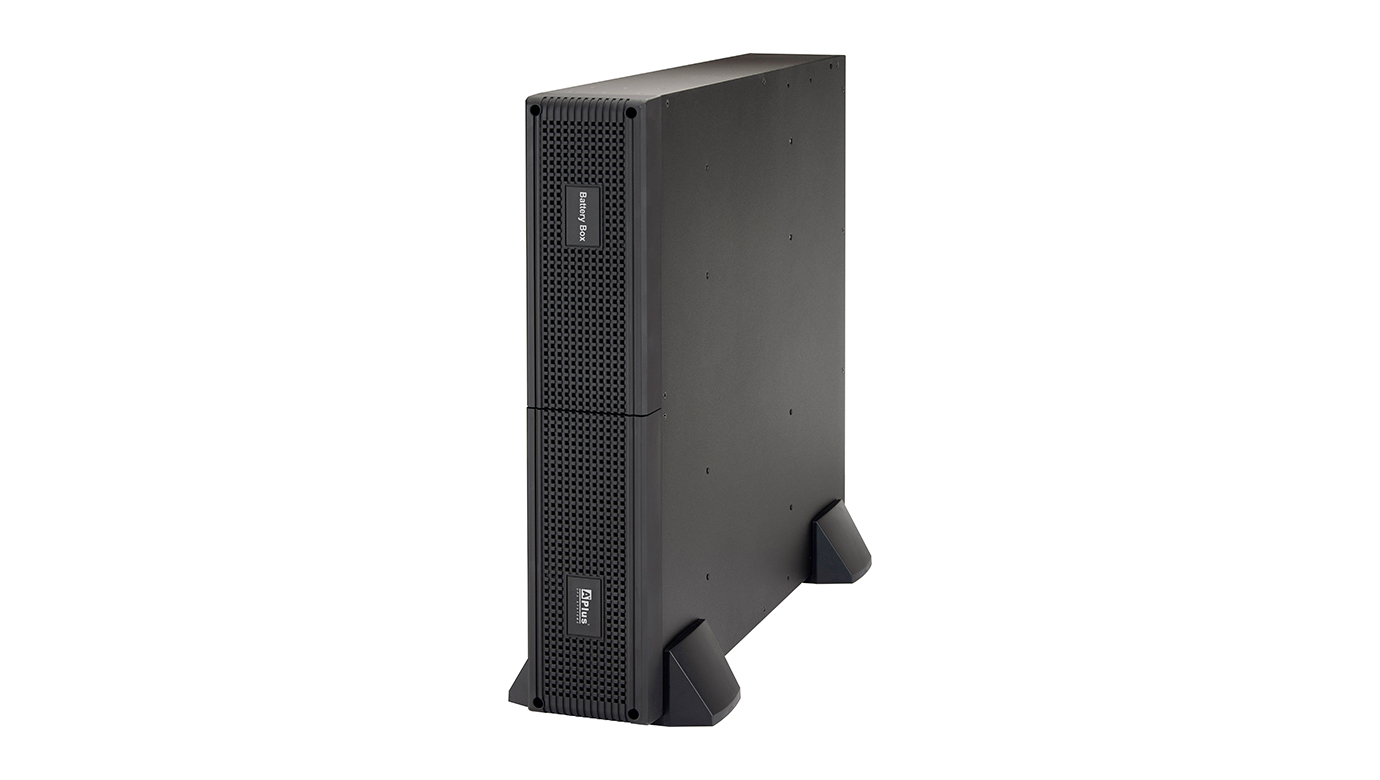

● External battery bank to extend back-up time (Optional)
● Intelligent Slot (SNMP) + USB multiple communications
● Microprocessor control guarantees high reliability
● Low heat dissipation in long time operation
● Emergency power-off function (EPO)
● High efficiency mode (ECO mode)
● Automatic self-testing function
● Output voltage regulation <1%
● Power management software
● Output power factor 0.9
● Wide input range
● DC start
● Individual Power Distribution Unit (PDU) with maintenance bypass switch
● External battery bank to extend back-up time (Optional)
● Intelligent Slot (SNMP) + USB multiple communications
● Microprocessor control guarantees high reliability
● Low heat dissipation in long time operation
● Emergency power-off function (EPO)
● High efficiency mode (ECO mode)
● Automatic self-testing function
● Output voltage regulation <1%
● Power management software
● Output power factor 0.9
● Wide input range
● DC start
| MODEL | PlusPRO 2-1000 | PlusPRO 2-3000 |
| CAPACITY | 1KVA/0.9KW | 3KVA/2.7KW |
| INPUT | ||
| Voltage | 1 Phase 2 Wires with Ground 110/115/120Vac | |
| Voltage Range | 55-150Vac | |
| Frequency | 50Hz or 60Hz (Auto-sensing) | |
| THDi | <5% at full load | |
| OUTPUT | ||
| Voltage | 110/115/120Vac | |
| Voltage Regulation | <1% | |
| Frequency (Battery Mode) | 50Hz or 60Hz +/-0.1Hz | |
| Waveform | Pure Sinewave | |
| THD | <4% (linear load), <8% (non-linear load) | |
| Crest Ratio | 3 : 1 | |
| EFFICIENCY | ||
| To AC Mode | >89% at full load and battery full charged | |
| To Battery Mode | >85% at full load and battery full charged | |
| To ECO Mode | >95% at full load and battery full charged | |
| BATTERY | ||
| Type | Maintenance free sealed lead-acid battery | |
| Voltage | 36VDC | 72VDC |
| Capacity & Number | 12V/7AH*3pcs | 12V/9AH*6pcs |
| Recharge Time | 5 hours to 90% | |
| TRANSFER TIME | ||
| Line Mode to Battery Mode | 0ms | |
| Inverter to Bypass, ECO Mode | <4ms | |
| ECO Mode to Inverter | <10ms | |
| DISPLAY | ||
| LCD Display | Input, Output, Load, Battery, Mode/Fault/Warning code, Inverter operating, Bypass operating, Output voltage and frequency and Bypass disable/enable selection information | |
| AUDIBLE ALARM | ||
| Battery Mode | Beeps Every 4 Seconds | |
| Low Battery | Sounding Every Second | |
| Overload | Sounding Twice Every Second | |
| Fault | Beeping Continuously | |
| COMMUNICATIONS | ||
| Interface (Port) | USB Port | |
| Intelligent Slot | Yes, but SNMP card is optional | |
| EPO | Emergency Power Off | |
| ENVIRONMENT | ||
| Operating Temperature | 0-40℃ | |
| Humidity | 20-90% (Non-condensing) | |
| Acousitc Noise | <45dB at 1M | |
| PHYSICAL | ||
| Rack Height | 2U | 4U |
| Dimension (D*W*H) | 480*440*90mm | 480*440*180mm |
*The capacity of connected loading do not exceed the capacity of UPS.
