PlusPRO 1 Series Tower
6000VA to 10000VA

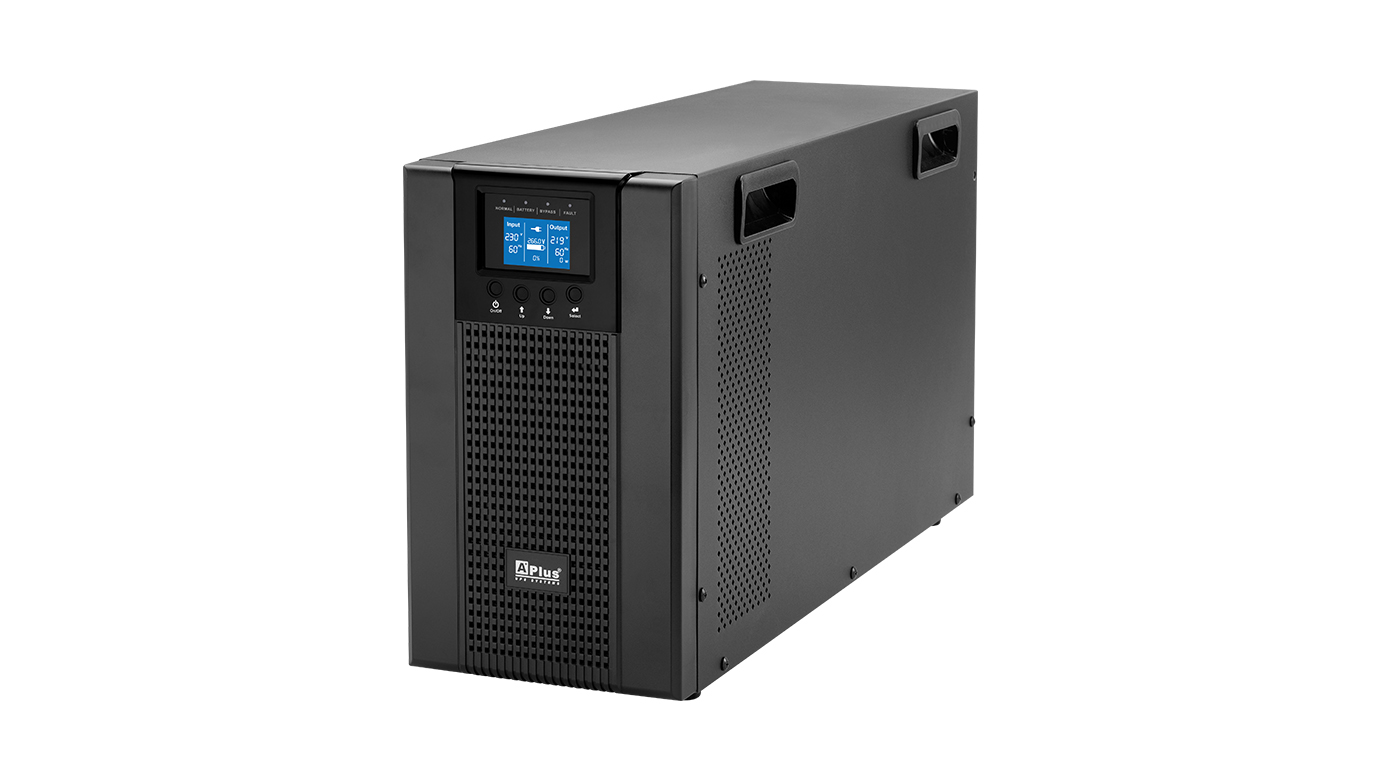

The PlusPRO 1 Series Tower 6000VA to 10000VA is a true double conversion online UPS with pure sinewave output and zero transfer time and enhanced capacity.

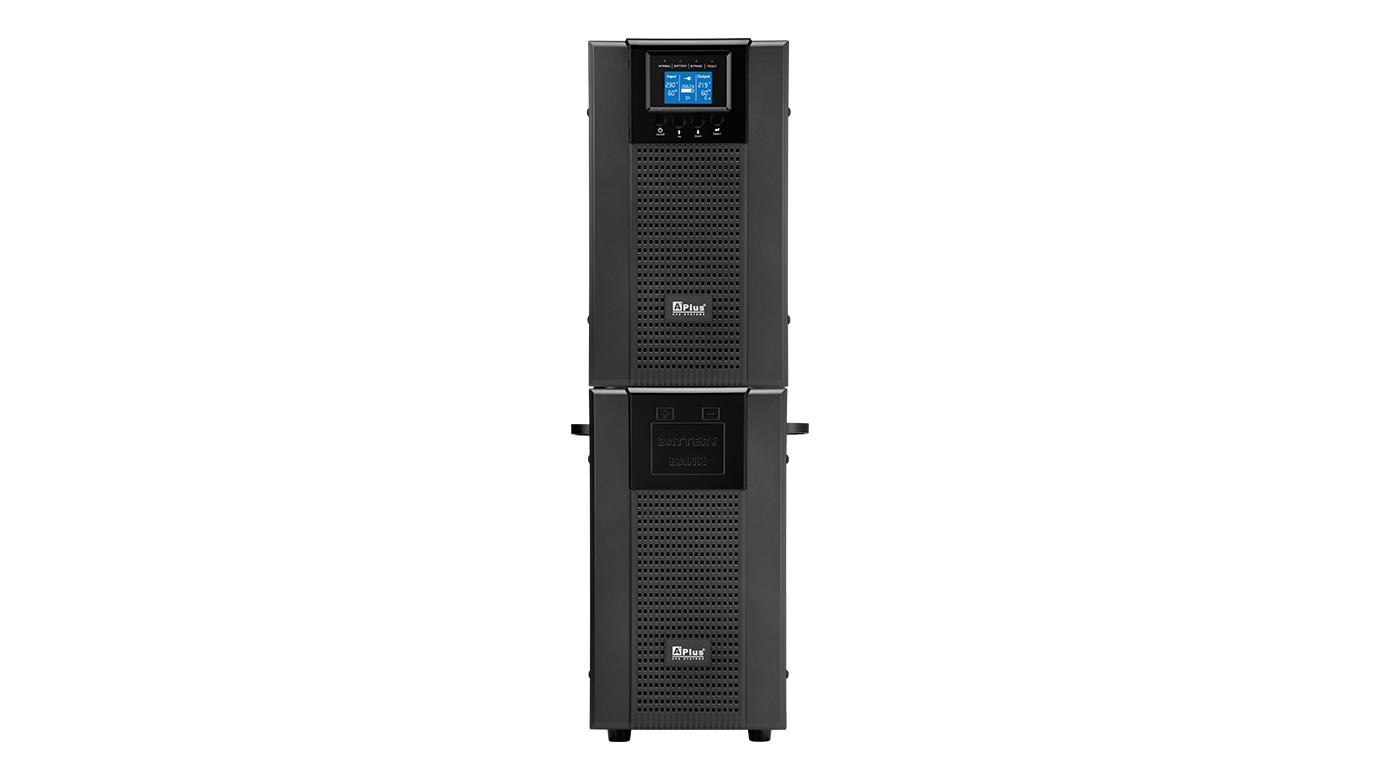

Main UPS and battery in a split box makes this UPS flexible to comply with the demand of single output voltage or long-time operation.
Featuring 6000VA, 10000VA integrated with LCD display, high output power factor 0.9, outstanding performance and optional external battery bank, PlusPRO 1 Series Tower 6000VA to 10000VA model stand out as high efficient line of online UPS for mission critical equipment and industrial applications in long time operation or harsh mains conditions.
Main UPS and battery in a split box makes this UPS flexible to comply with the demand of single output voltage or long-time operation.
Featuring 6000VA, 10000VA integrated with LCD display, high output power factor 0.9, outstanding performance and optional external battery bank, PlusPRO 1 Series Tower 6000VA to 10000VA model stand out as high efficient line of online UPS for mission critical equipment and industrial applications in long time operation or harsh mains conditions.
● High performance true double conversion Online UPS 6000VA to 10000VA
● Terminal block type Power Distribution Unit (PDU) for input and output

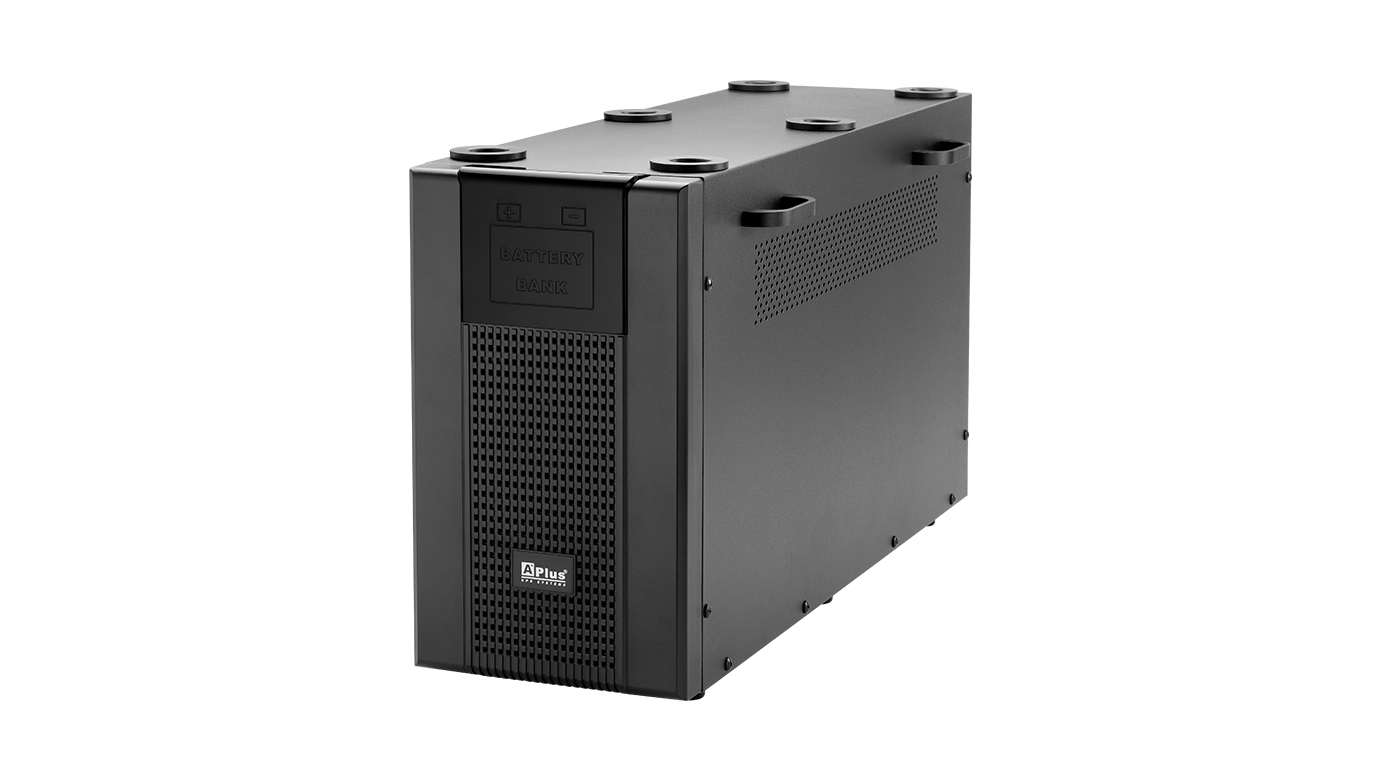

● External battery box to extend backup time (Optional)
● Microprocessor control guarantees high reliability
● Low heat dissipation in long time operation
● Emergency power-off function (EPO)
● Input THDi <5% / Output THD <2%
● High efficiency mode (ECO mode)
● Output voltage regulation <1%
● Automatic self-testing function
● Power management software
● Fan speed control & DC start
● Output power factor 0.9
● Terminal block type Power Distribution Unit (PDU) for input and output
● External battery box to extend backup time (Optional)
● Microprocessor control guarantees high reliability
● Low heat dissipation in long time operation
● Emergency power-off function (EPO)
● Input THDi <5% / Output THD <2%
● High efficiency mode (ECO mode)
● Output voltage regulation <1%
● Automatic self-testing function
● Power management software
● Fan speed control & DC start
● Output power factor 0.9
| MODEL | PlusPRO 1-6KT | PlusPRO 1-10KT |
| CAPACITY | 6KVA/5.4KW | 10KVA/9KW |
| INPUT | ||
| Phase | 1 Phase 2 Wires with Ground | |
| Voltage | 220/230/240Vac | |
| Frequency | 50Hz or 60Hz (Auto-sensing) | |
| THDi | <5% with R full load | |
| OUTPUT | ||
| Phase | 1 Phase 2 Wires with Ground | |
| Voltage | 220/230/240Vac | |
| Voltage Regulation | +/-1% | |
| Frequency (Battery Mode) | 50Hz or 60Hz +/-0.05Hz | |
| Waveform | Pure Sinewave | |
| THD | <2% (linear load), <5% (non-linear load) | |
| Crest Ratio | 3 : 1 | |
| EFFICIENCY | ||
| To AC Mode | >92% at full load and battery fully charged | |
| To Battery Mode | >92% at full load and 12VDC/battery | |
| To ECO Mode | >96% at full load and battery fully charged | |
| BATTERY | ||
| Type | Maintenance free sealed lead-acid battery | |
| Voltage | 240VDC | |
| Capacity & Number | 12V/7AH*20pcs | 12V/9AH*20pcs |
| Recharge Time | 7 hours to 90% | 8 hours to 90% |
| TRANSFER TIME | ||
| Line Mode to Battery Mode | 0ms | |
| Inverter to Bypass | 0ms | |
| ECO Mode to Inverter | <10ms | |
| DISPLAY | ||
| LED Indicator | Normal (Green), Bypass (Yellow), Fault (Red), Battery (Yellow) | |
| LCD Display | Load level, Battery voltage, Battery mode, AC mode, Bypass mode information | |
| AUDIBLE ALARM | ||
| Battery Mode | Beeps Every 4 Seconds | |
| Low Battery | Sounding Every Second | |
| Overload | Sounding Twice Every Second | |
| Fault | Beeping Continuously | |
| COMMUNICATIONS | ||
| Interface (Port) | USB Port (Dry Contact is optional) | |
| Intelligent Slot | Yes, but SNMP card is optional | |
| EPO | Emergency Power Off | |
| ENVIRONMENT | ||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |
| Humidity | 0-95% (Non-condensing) | |
| Acousitc Noise | <50dB at 1M | |
| PHYSICAL | ||
| Main UPS (D*W*H) | 623*192*347mm | |
| Battery Box with Terminal PDU (D*W*H) | 623*192*347mm | |
| Battery Box (D*W*H) | 623*192*347mm | |
*The capacity of connected loading do not exceed the capacity of UPS.
