PlusPRO 5 Series Rack/Tower
6000VA to 10000VA
The PlusPRO 5 Series Rack/Tower 6000VA to 10000VA is a true double conversion online UPS with pure sinewave output, zero transfer time and enhanced capacity.

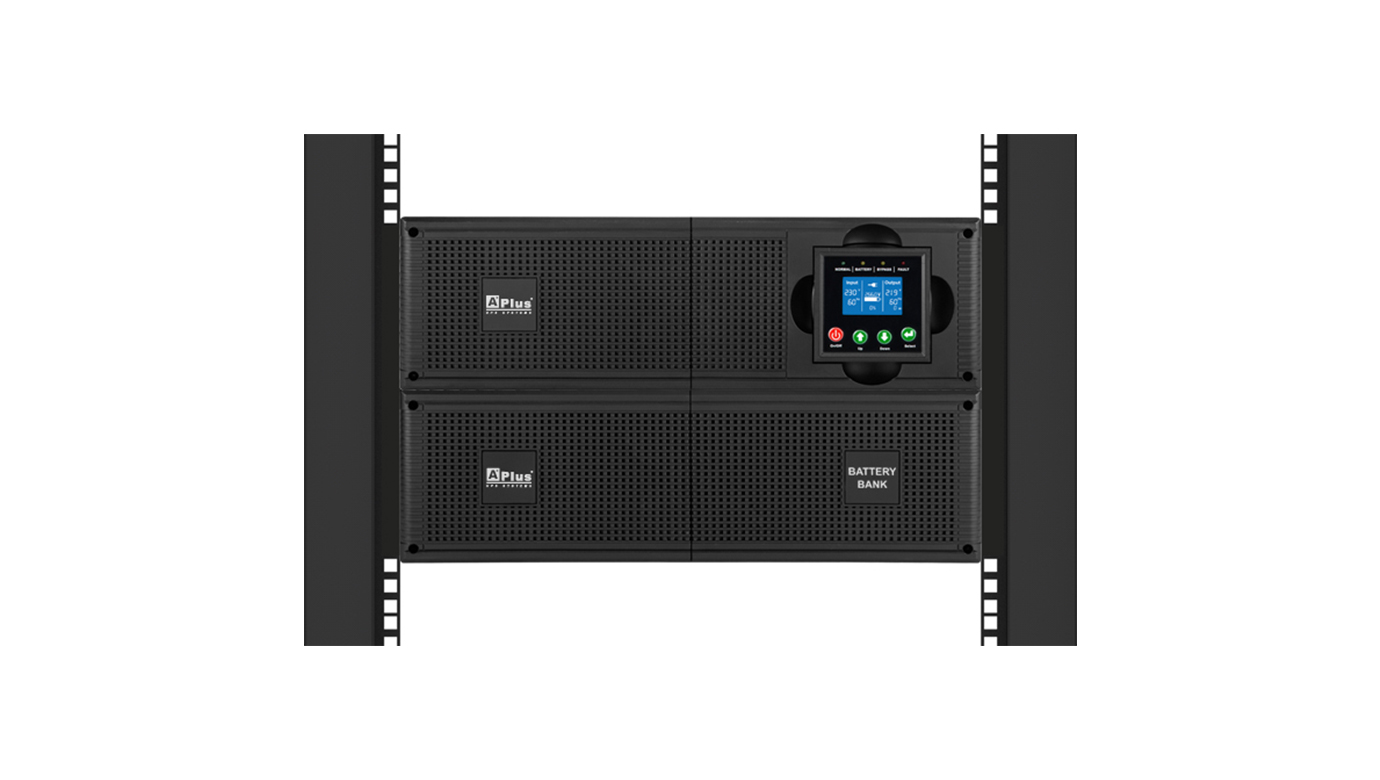

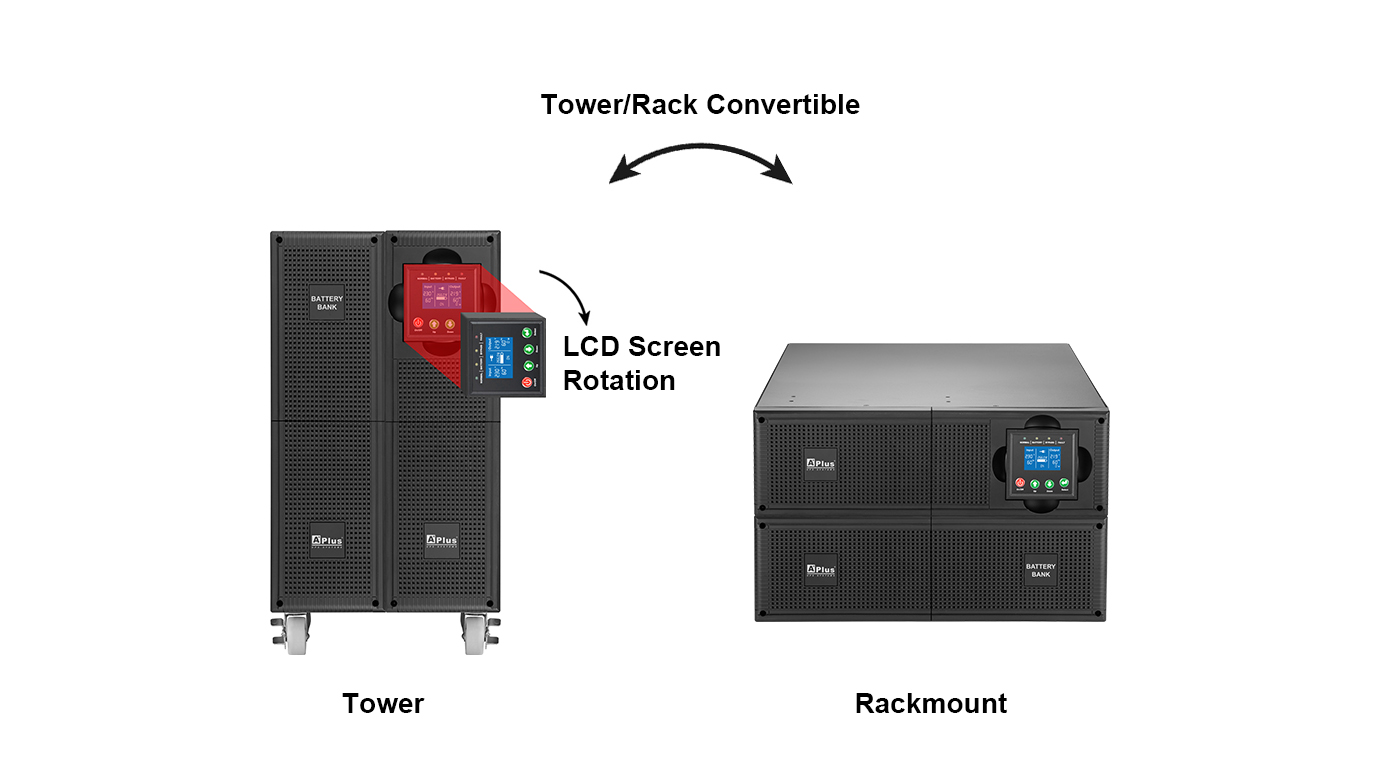

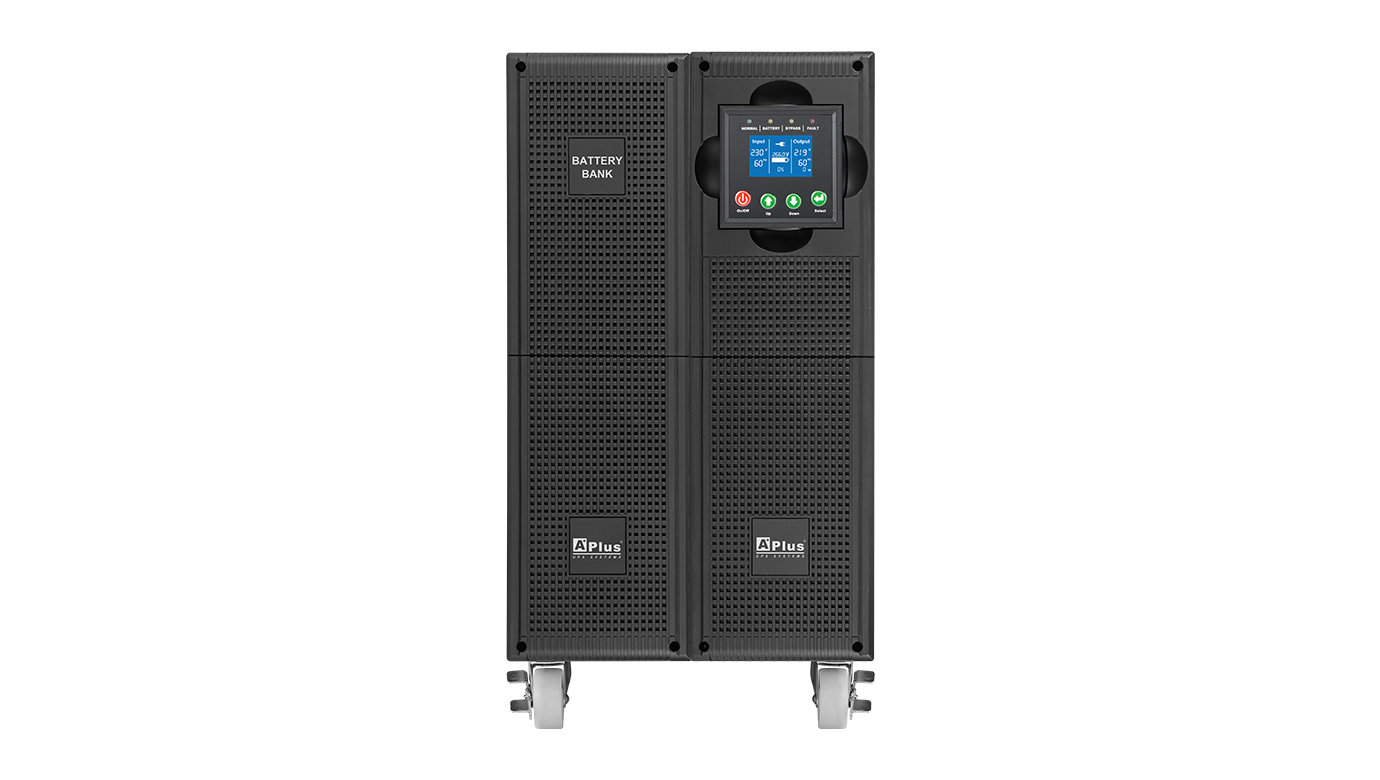

Main UPS and battery are in split 3U rack/tower convertible box individually. With split-type design, it flexibly complies with users' demand no matter for standard or long time operation.
Featuring 6000VA, 10000VA integrated with LCD display, Power Distribution Unit(PDU), high output power factor 0.9, outstanding performance and optional external battery bank, PlusPRO 5 Series Rack/Tower 6000VA to 10000VA model stand out as high efficient online UPS during harsh mains condition for mission critical equipment in data/computer center or industrial applications.
Main UPS and battery are in split 3U rack/tower convertible box individually. With split-type design, it flexibly complies with users' demand no matter for standard or long time operation.
Featuring 6000VA, 10000VA integrated with LCD display, Power Distribution Unit(PDU), high output power factor 0.9, outstanding performance and optional external battery bank, PlusPRO 5 Series Rack/Tower 6000VA to 10000VA model stand out as high efficient online UPS during harsh mains condition for mission critical equipment in data/computer center or industrial applications.
● Power Distribution Unit (PDU) with maintenance bypass switch
● High performance true double conversion online UPS 6-10KVA
● N+X parallel redundancy and capacity expansion (Optional)
● External battery bank to extend backup time (Optional)
● Microprocessor control guarantees high reliability
● Low heat dissipation in long time operation
● Input THDi < 5% / Output THD < 2%
● Emergency power-off function (EPO)
● High efficiency mode (ECO mode)
● Fan speed control and DC start
● Output voltage regulation < 1%
● Automatic self-testing function
● Power management software
● Output power factor 0.9
● High performance true double conversion online UPS 6-10KVA
● N+X parallel redundancy and capacity expansion (Optional)
● External battery bank to extend backup time (Optional)
● Microprocessor control guarantees high reliability
● Low heat dissipation in long time operation
● Input THDi < 5% / Output THD < 2%
● Emergency power-off function (EPO)
● High efficiency mode (ECO mode)
● Fan speed control and DC start
● Output voltage regulation < 1%
● Automatic self-testing function
● Power management software
● Output power factor 0.9
| MODEL | PlusPRO 5-6K | PlusPRO 5-10K |
| CAPACITY | 6KVA/5.4KW | 10KVA/9KW |
| INPUT | ||
| Phase | 1 Phase 2 Wires with Ground | |
| Voltage | 220/230/240Vac | |
| Frequency | 50Hz or 60Hz (Auto-sensing) | |
| THDi | <5% with R full load | |
| OUTPUT | ||
| Phase | 1 Phase 2 Wires with Ground | |
| Voltage | 220/230/240Vac | |
| Voltage Regulation | +/-1% | |
| Frequency (Battery Mode) | 50Hz or 60Hz +/-0.05Hz | |
| Waveform | Pure Sinewave | |
| THD | <2% (linear load), <5% (non-linear load) | |
| Crest Ratio | 3 : 1 | |
| EFFICIENCY | ||
| To AC Mode | >92% at full load and battery fully charged | |
| To Battery Mode | >92% at full load and 12VDC/battery | |
| To ECO Mode | >96% at full load and battery fully charged | |
| BATTERY | ||
| Type | Maintenance free sealed lead-acid battery | |
| Voltage | 240VDC | |
| Capacity & Number | 12V/7AH*20pcs | 12V/9AH*20pcs |
| Recharge Time | 7 hours to 90% | 8 hours to 90% |
| TRANSFER TIME | ||
| Line Mode to Battery Mode | 0ms | |
| Inverter to Bypass | 0ms | |
| ECO Mode to Inverter | <10ms | |
| DISPLAY | ||
| LED Indicator | Normal (Green), Bypass (Yellow), Fault (Red), Battery (Yellow) | |
| LCD Display | Load level, Battery voltage, Battery mode, AC mode, Bypass mode information | |
| AUDIBLE ALARM | ||
| Battery Mode | Beeps Every 4 Seconds | |
| Low Battery | Sounding Every Second | |
| Overload | Sounding Twice Every Second | |
| Fault | Beeping Continuously | |
| COMMUNICATIONS | ||
| Interface (Port) | USB Port (Dry Contact is optional) | |
| Intelligent Slot | Yes, but SNMP card is optional | |
| EPO | Emergency Power Off | |
| ENVIRONMENT | ||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |
| Humidity | 0-95% (Non-condensing) | |
| Acousitc Noise | <50dB at 1M | |
| PHYSICAL | ||
| Format of Main UPS | Tower/Rack: 3U | |
| Main UPS (D*W*H) | 610*440*135mm | |
| Format of Battery Box | Tower/Rack: 3U | |
| Battery Box (D*W*H) | 610*440*135mm | |
*The capacity of connected loading do not exceed the capacity of UPS.
