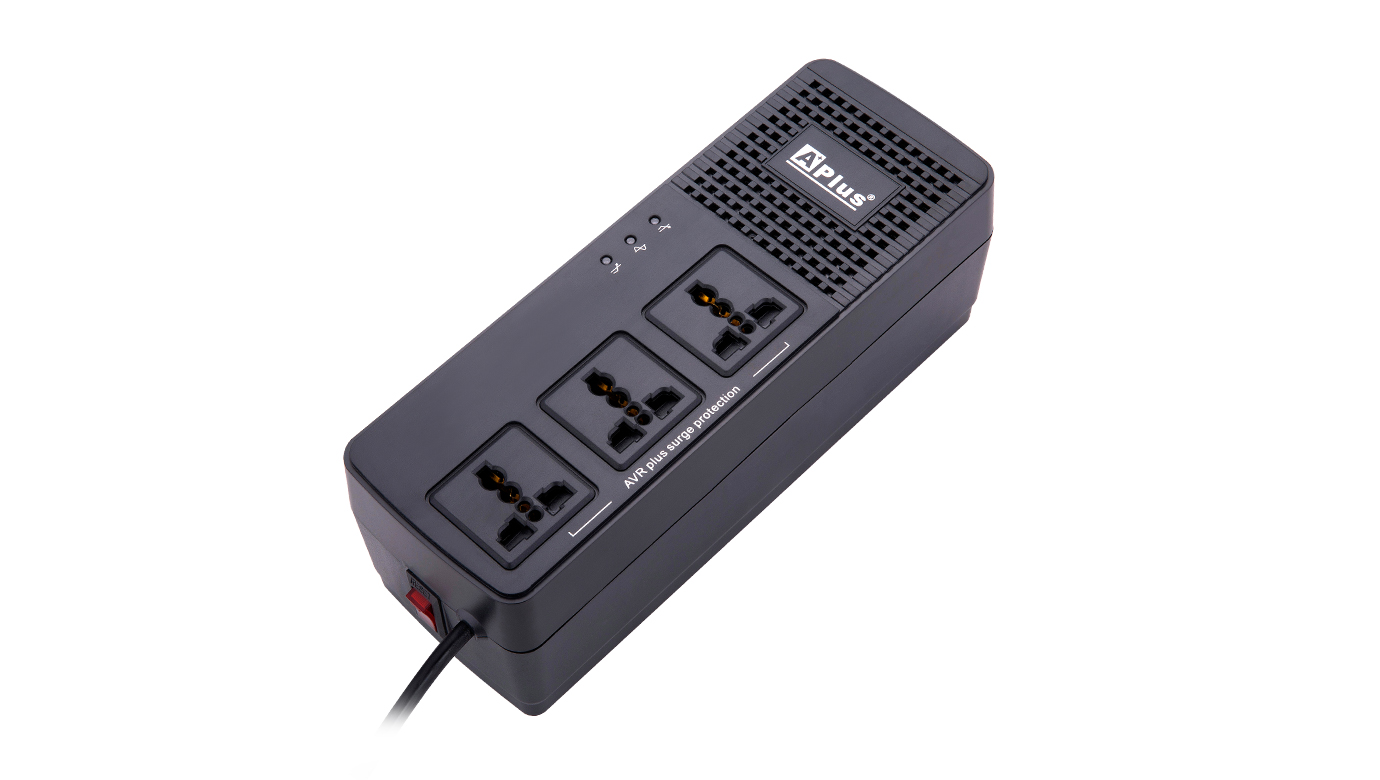

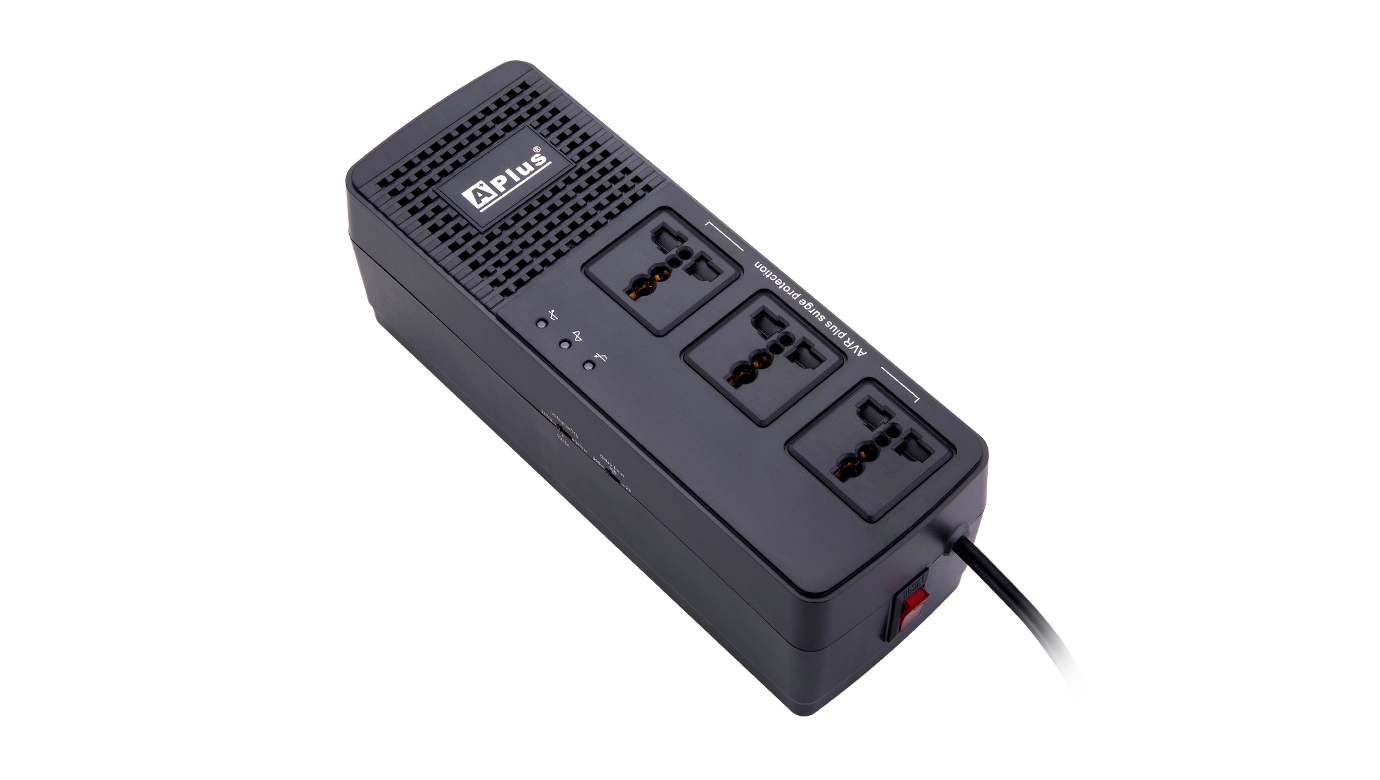

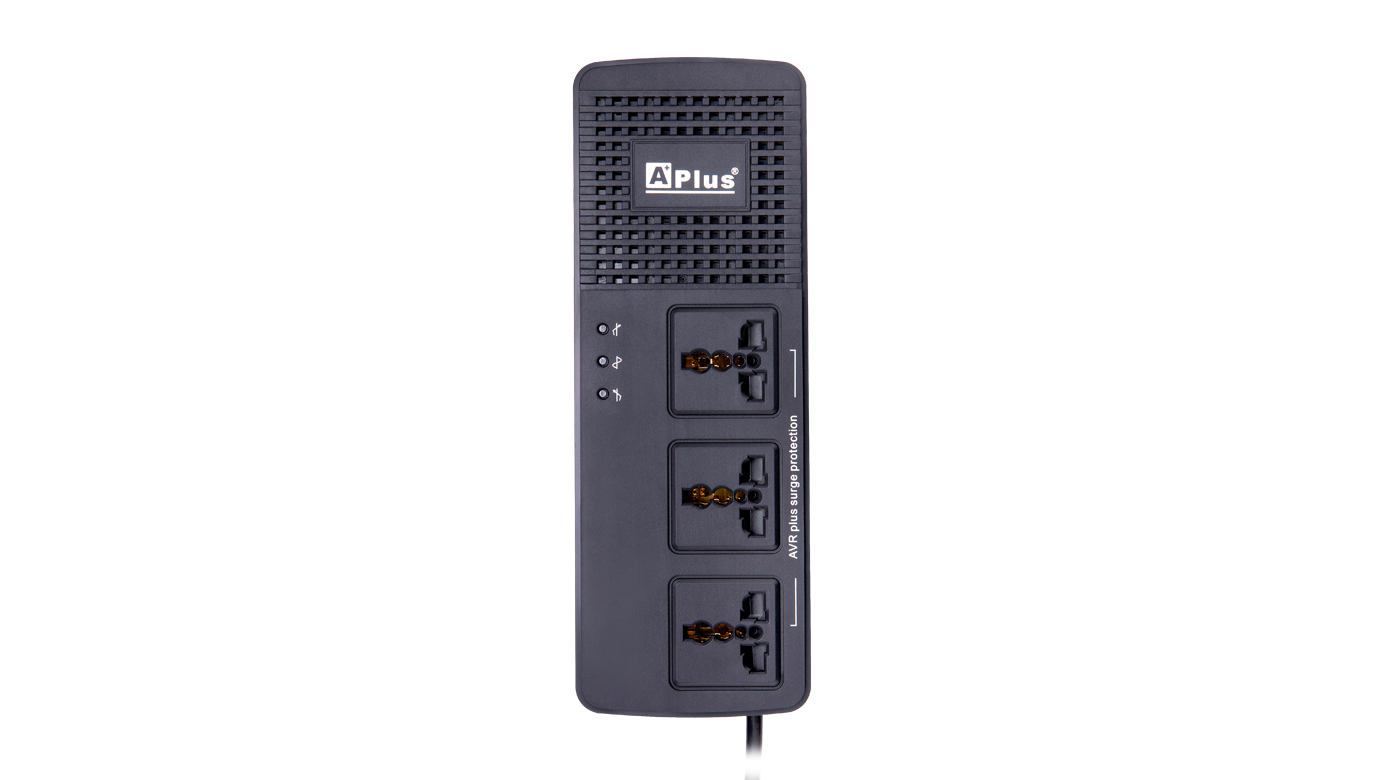

PlusShield 7 Series
1000VA to 2200VA
The PlusShield 7 Series 1000VA to 2200VA is designed to automatically maintain a constant voltage level to protect sensitive electronics from unsafe fluctuations such as power sag, surge, spike or over voltage.
Featuring 1000VA to 2200VA integrated with 3 steps regulation, 3 AVR protected outlets, 2/10/30 sec. delay reconnection and LED status indicator in a compact wall-mount slim unit. PlusShield 7 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
Featuring 1000VA to 2200VA integrated with 3 steps regulation, 3 AVR protected outlets, 2/10/30 sec. delay reconnection and LED status indicator in a compact wall-mount slim unit. PlusShield 7 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
● Provide stable output voltage through boost and buck stabilizer
● Built-in thermal switch for over-temperature protection
● High/low voltage cut-off and overload protection
● Delay reconnection selector (2/10/30 seconds)
● Power switch with resettable circuit breaker
● Microprocessor controlled design
● Surge suppression 320 Joules
● Built-in thermal switch for over-temperature protection
● High/low voltage cut-off and overload protection
● Delay reconnection selector (2/10/30 seconds)
● Power switch with resettable circuit breaker
● Microprocessor controlled design
● Surge suppression 320 Joules
| MODEL | PlusShield 7-1000R4 | PlusShield 7-1200R4 | PlusShield 7-2200R4 |
| CAPACITY | 1000VA/500W | 1200VA/600W | 2200VA/1100W |
| INPUT | |||
| Voltage | 220/230/240Vac | ||
| Voltage Range | -25%, +20% | ||
| Frequency | 50Hz or 60Hz (Auto-sensing) | ||
| OUTPUT | |||
| Voltage | 220/230/240Vac | ||
| Voltage Range | +/-10% | ||
| Frequency | 50Hz or 60Hz | ||
| Steps of Regulation | 2 Boost + 1 Buck | ||
| Outlet: Universal | 3pcs AVR/Surge protectoed | ||
| PROTECTION | |||
| Overload | Manual Reset Circuit Switch | ||
| Over-temperature | Thermal Switch | ||
| Over-voltage Cut-off | Yes | ||
| Low-voltage Cut-off | Yes | ||
| Surge Suppression | 320 Joules | ||
| Delay Timer | Selectable 2 sec. / 10 sec. / 30 sec. | ||
| STATUS INDICATOR | |||
| AC Normal | Green | ||
| Boost | Yellow | ||
| Buck | Yellow | ||
| ENVIRONMENT | |||
| Operating Temperature | 0°C-40°C (32°F-104°F) | ||
| Humidity | <95% (Non-condensing) | ||
| Acousitc Noise | <40dB at 1M | ||
*The capacity of connected loading do not exceed the capacity of AVR.
