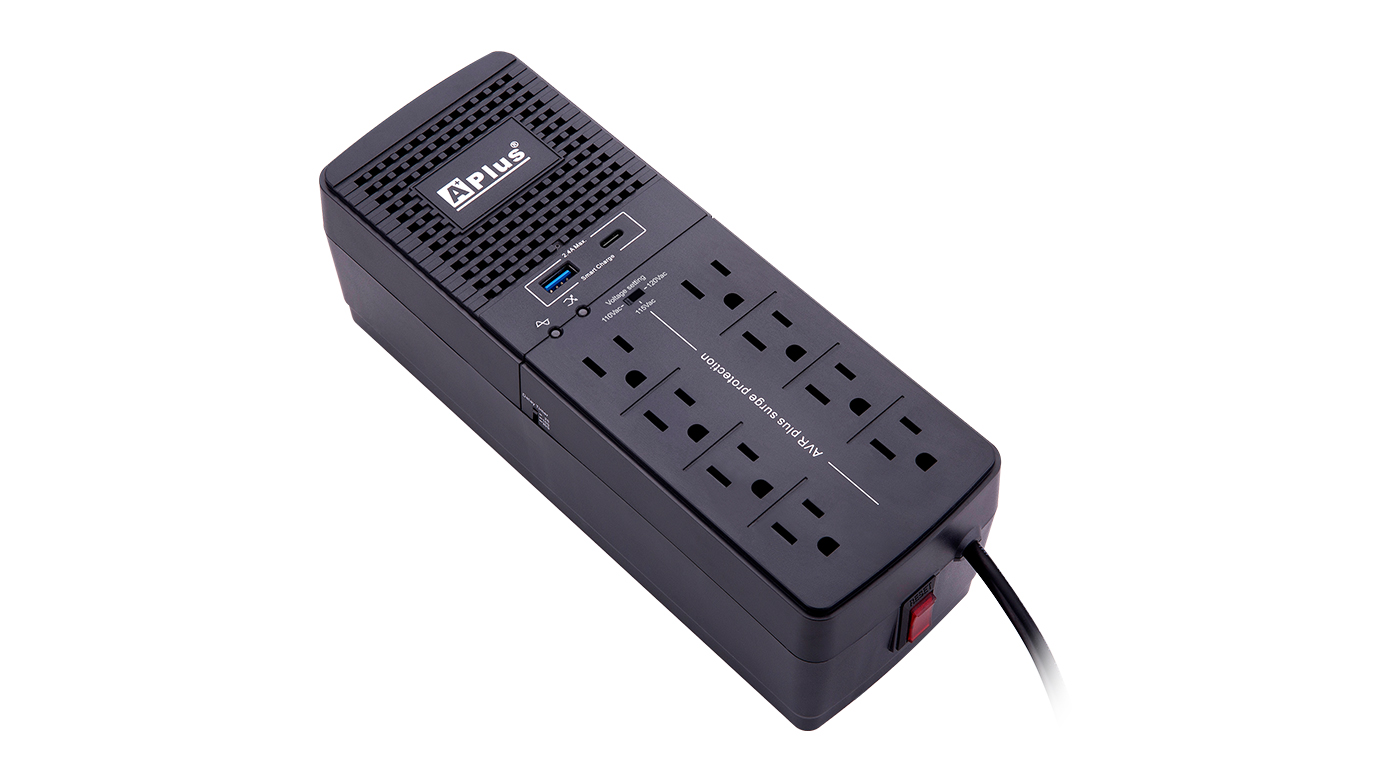

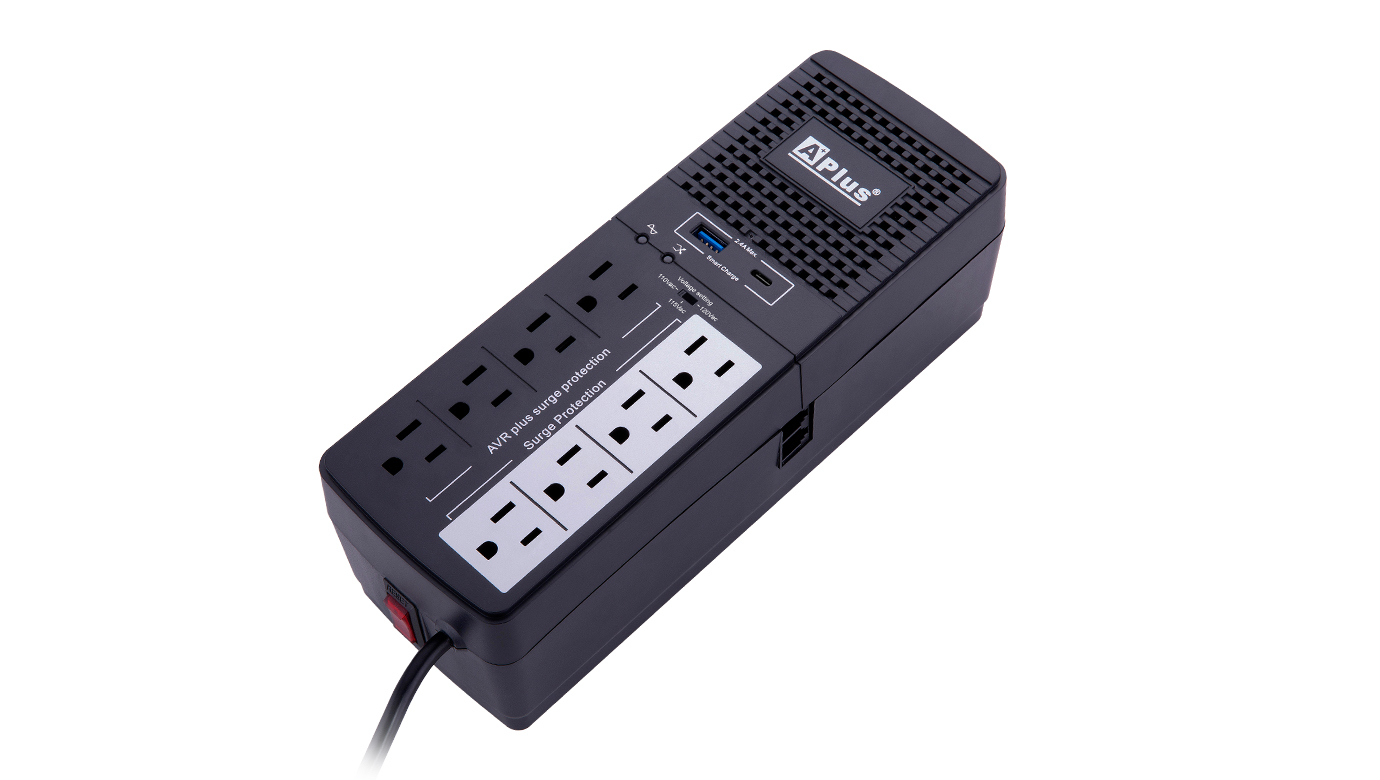

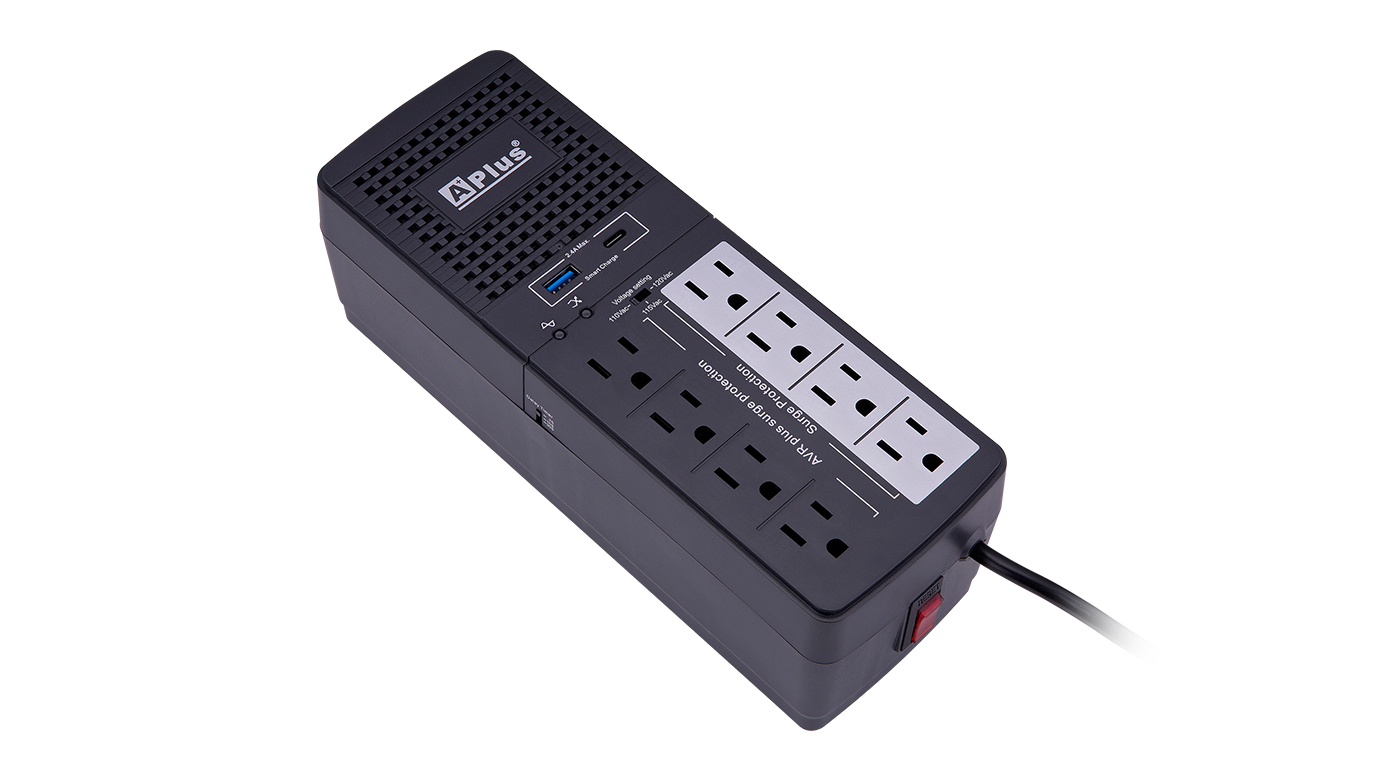

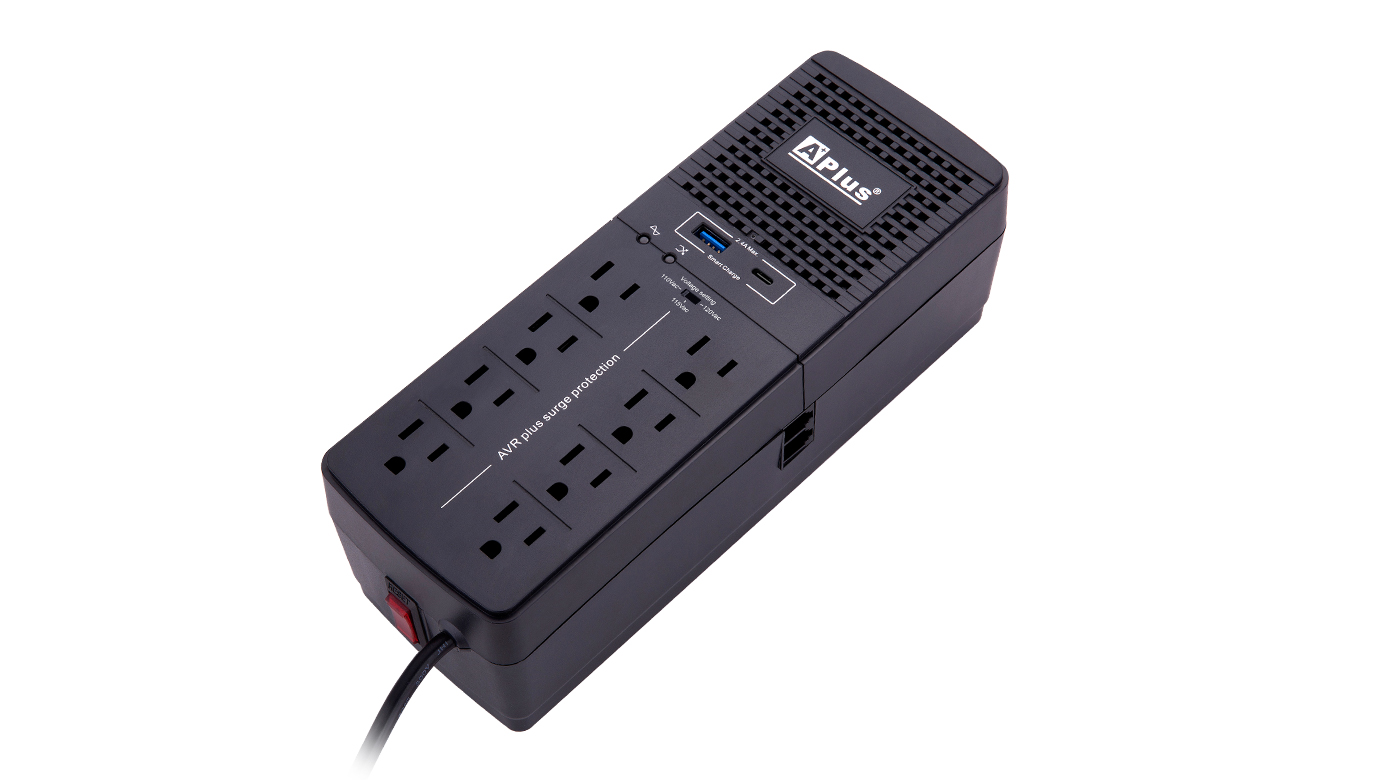

PlusShield 2 Series
1000VA to 2200VA
The PlusShield 2 Series 1000VA to 2200VA is designed to automatically maintain a constant voltage level to protect sensitive electronics from unsafe fluctuations such as power sag, surge, spike or over voltage.
Featuring 1000VA to 2200VA integrated with 3 steps regulation, 4 AVR protected outlets, 4 extended outlets, 2/10/30 sec. delay reconnection, smart USB charging station and LED status indicator in a compact wall-mount slim unit. PlusShield 2 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
Featuring 1000VA to 2200VA integrated with 3 steps regulation, 4 AVR protected outlets, 4 extended outlets, 2/10/30 sec. delay reconnection, smart USB charging station and LED status indicator in a compact wall-mount slim unit. PlusShield 2 Series fits into working environments perfectly to protect any sensitive electronics in home or office.
● Smart USB charging 5VDC 2.4A max. for smart devices power charging
● Provide stable output voltage through boost and buck stabilizer
● Built-in thermal switch for over-temperature protection
● High/low voltage cut-off and overload protection
● Delay reconnection selector (2/10/30 seconds)
● Power switch with resettable circuit breaker
● Microprocessor controlled design
● Surge suppression 320 Joules
● Phone line surge protection
● Provide stable output voltage through boost and buck stabilizer
● Built-in thermal switch for over-temperature protection
● High/low voltage cut-off and overload protection
● Delay reconnection selector (2/10/30 seconds)
● Power switch with resettable circuit breaker
● Microprocessor controlled design
● Surge suppression 320 Joules
● Phone line surge protection
| MODEL | PlusShield 2-1000N | PlusShield 2-1200N | PlusShield 2-2200N |
| CAPACITY | 1000VA/500W | 1200VA/600W | 2200VA/1100W |
| INPUT | |||
| Voltage | 110/115/120Vac | ||
| Voltage Range | -25%, +20% | ||
| Frequency | 50Hz or 60Hz (Auto-sensing) | ||
| OUTPUT | |||
| Voltage | 110/115/120Vac | ||
| Voltage Range | +/-10% | ||
| Frequency | 50Hz or 60Hz | ||
| Steps of Regulation | 2 Boost + 1 Buck | ||
| Outlet: Nema5-15R | 4pcs AVR/Surge protected + 4pcs AVR/Surge protected | 8pcs AVR/Surge protected | |
| Smart USB Charging | 2 ports, 5VDC 2.4A max. | ||
| PROTECTION | |||
| Overload | Manual Reset Circuit Switch | ||
| Over-temperature | Thermal Switch | ||
| Over-voltage Cut-off | Yes | ||
| Low-voltage Cut-off | Yes | ||
| Surge Suppression | 320 Joules | ||
| Delay Timer | Selectable 2 sec. / 10 sec. / 30 sec. | ||
| STATUS INDICATOR | |||
| AC Normal | Green | ||
| Regulation | Yellow | ||
| ENVIRONMENT | |||
| Operating Temperature | 0°C-40°C (32°F-104°F) | ||
| Humidity | <95% (Non-condensing) | ||
| Acousitc Noise | <40dB at 1M | ||
*The capacity of connected loading do not exceed the capacity of AVR.
