PlusPRO 3 Series Tower
3000VA
Battery Pack
Battery Pack

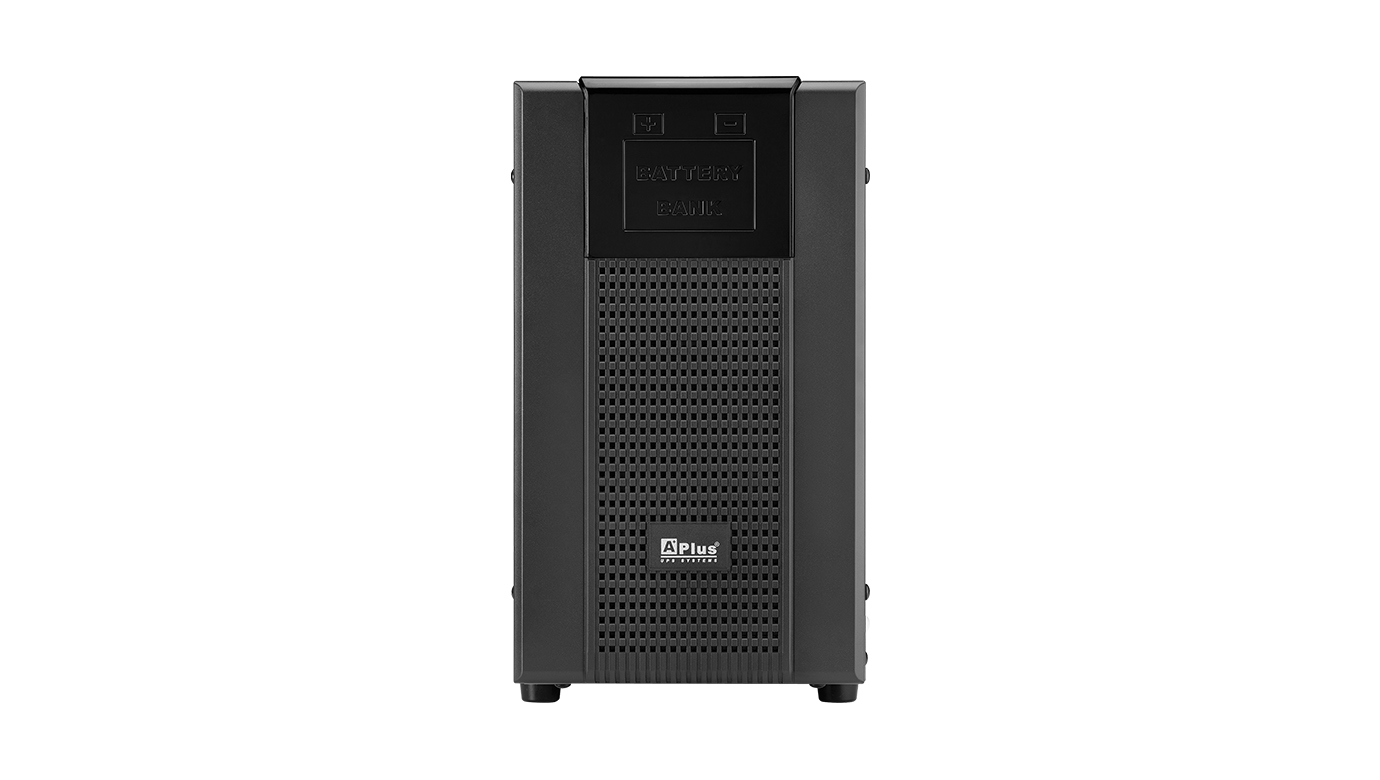

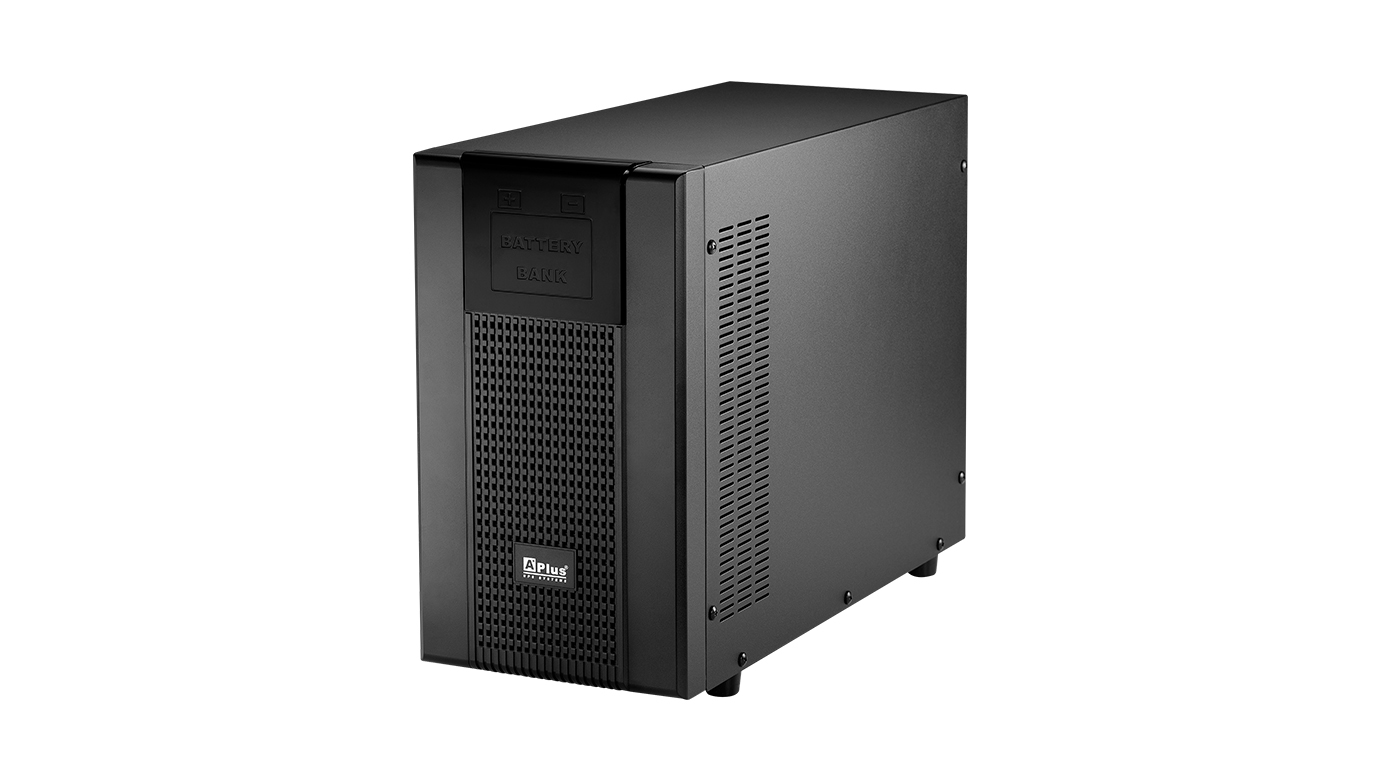

The PlusPRO 3BB-72V-18AH external battery pack is connected to PlusPRO 3 Series LV Tower 3000VA UPS models. The PlusPRO 3BB-96V-14AH external battery pack is connected to PlusPRO 3 Series HV Tower 3000VA UPS models. External battery pack provides continuous power from the batteries for flexible runtime extension of UPS systems.
● Extended-run battery pack provide flexible runtime for UPS systems
● Advanced battery management included
● Multiple battery pack configuration
● Advanced battery management included
● Multiple battery pack configuration
| MODEL | PlusPRO 3BB-72V-18AH | PlusPRO 3BB-96V-14AH |
| BATTERY | ||
| Type | Maintenance-free Lead Acid battery | |
| Voltage | 72VDC | 96VDC |
| Capacity | 12V/9AH*6pcs*2sets | 12V/7AH*8pcs*2sets |
| Expected Battery Life | 3-5 years | |
| ENVIRONMENT | ||
| Operating Temperature | 0°C-40°C (32°F-104°F) | |
| Humidity | 0-95% (Non-condensing) | |
| PHYSICAL | ||
| Dimension (D*W*H) | 560*193*346mm | |
