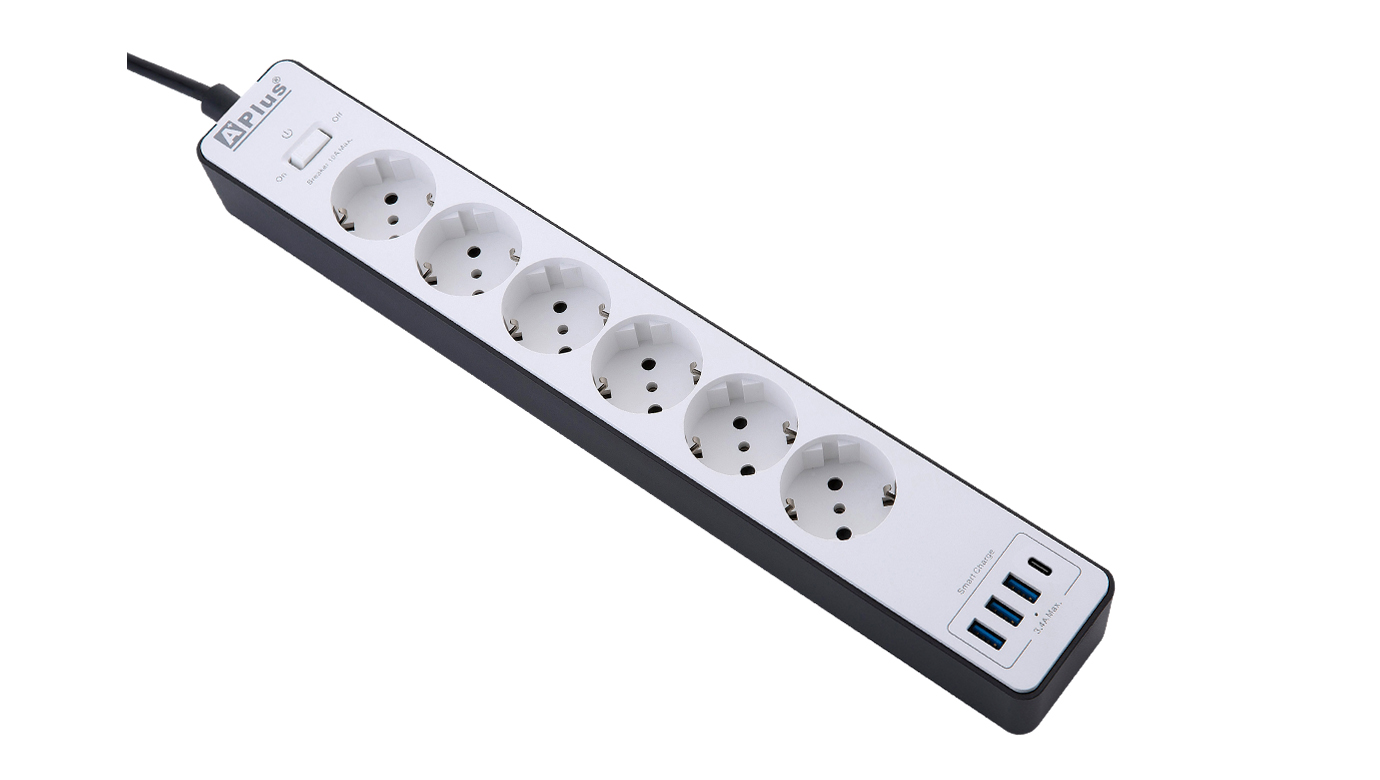

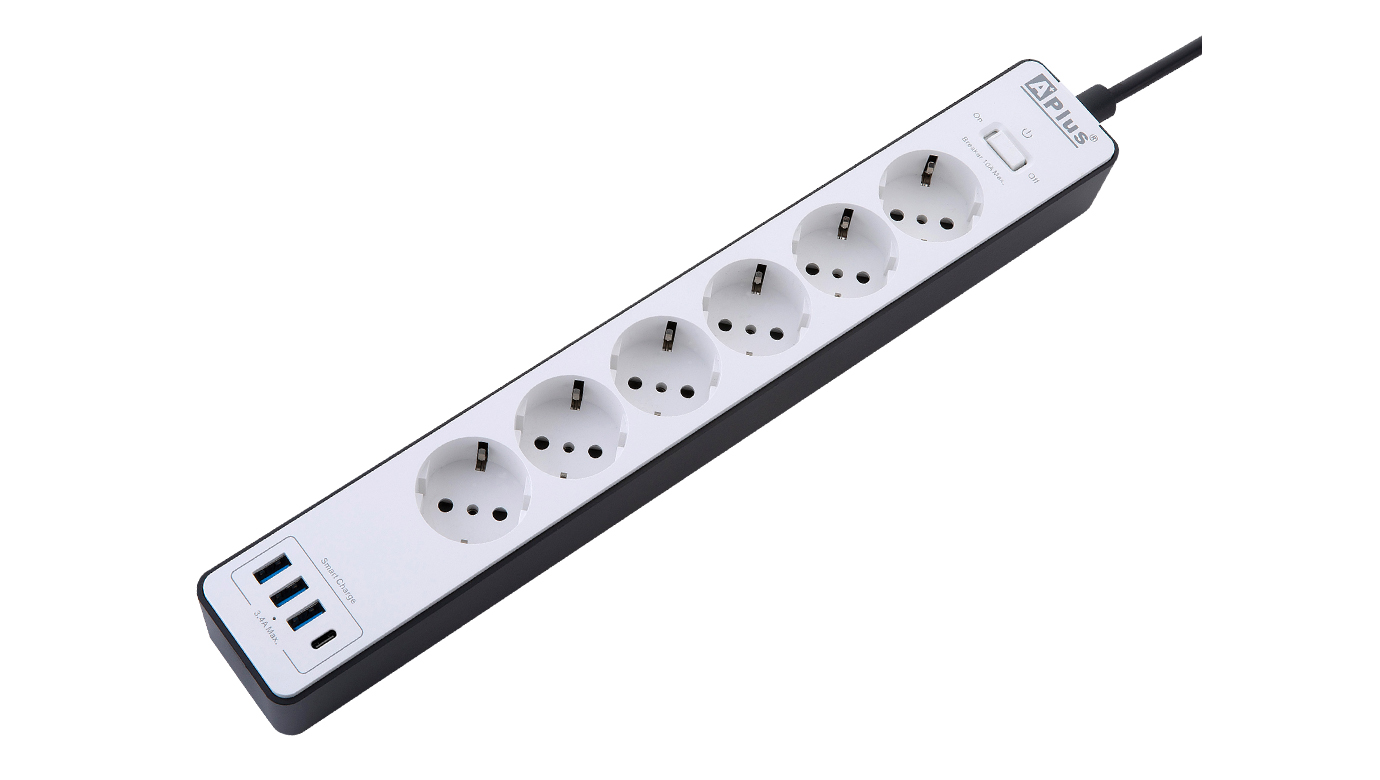

PlusCharger 3 Series
10AMPS
PlusCharger 3WB Series
PlusCharger 3WB Series
The PlusCharger 3 Series is a Smart Charger Station rated at 10 Amps, it provides overload protection through power switch with built-in resettable circuit breaker. Built in MOV excess electricity for additional protection. It also equipped with smart charging station, SC-5VDC, USB charging port for smart devices power charging. The PlusCharger 3 Series can ensure electrical safety and also provide power for devices with cables that can't reach any nearby electrical outlets.
● Smart Charging Station 5VDC USB Charging Port
● Provide Lightning, Surge, Overload Protection
● Power Switch with Resettable Circuit Breaker
● Absorbs Excess Electricity through MOVs
● Grounded Multi-outlet Design
● Fire Retardant Plastic Material
● Surge Suppression 900 Joules
● Wall Mountable
● Provide Lightning, Surge, Overload Protection
● Power Switch with Resettable Circuit Breaker
● Absorbs Excess Electricity through MOVs
● Grounded Multi-outlet Design
● Fire Retardant Plastic Material
● Surge Suppression 900 Joules
● Wall Mountable
| MODEL | PlusCharger 3WB-10A-18M |
| INPUT | |
| Voltage Range | 220-240Vac |
| Frequency | 50Hz or 60Hz |
| Type of Input | German plug |
| Cable Length | 1.8M (5.9ft), 1 mm² |
| OUTPUT | |
| Power Rating | 10A |
| Type of Output: Schuko | 6 Receptacles |
| USB Charging Port | 5VDC, 4 ports, 3.4A Max. |
| PROTECTION | |
| Surge Rating | 900 Joules |
| Overload Protection | Yes |
| Power Safety Shutdown | Yes |
| PHYSICAL | |
| Dimensions | 375*55*43mm |
*The capacity of connected loading do not exceed the capacity of surge protector.
