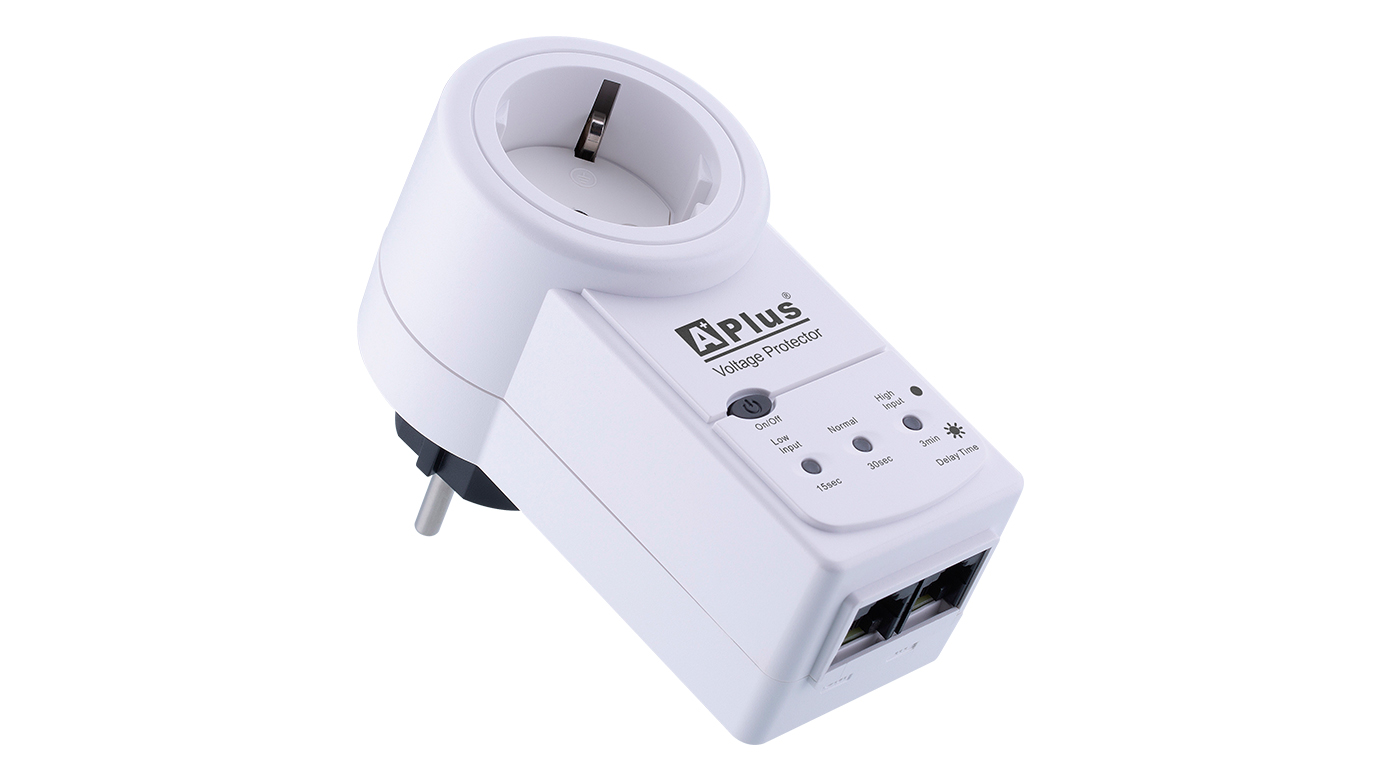

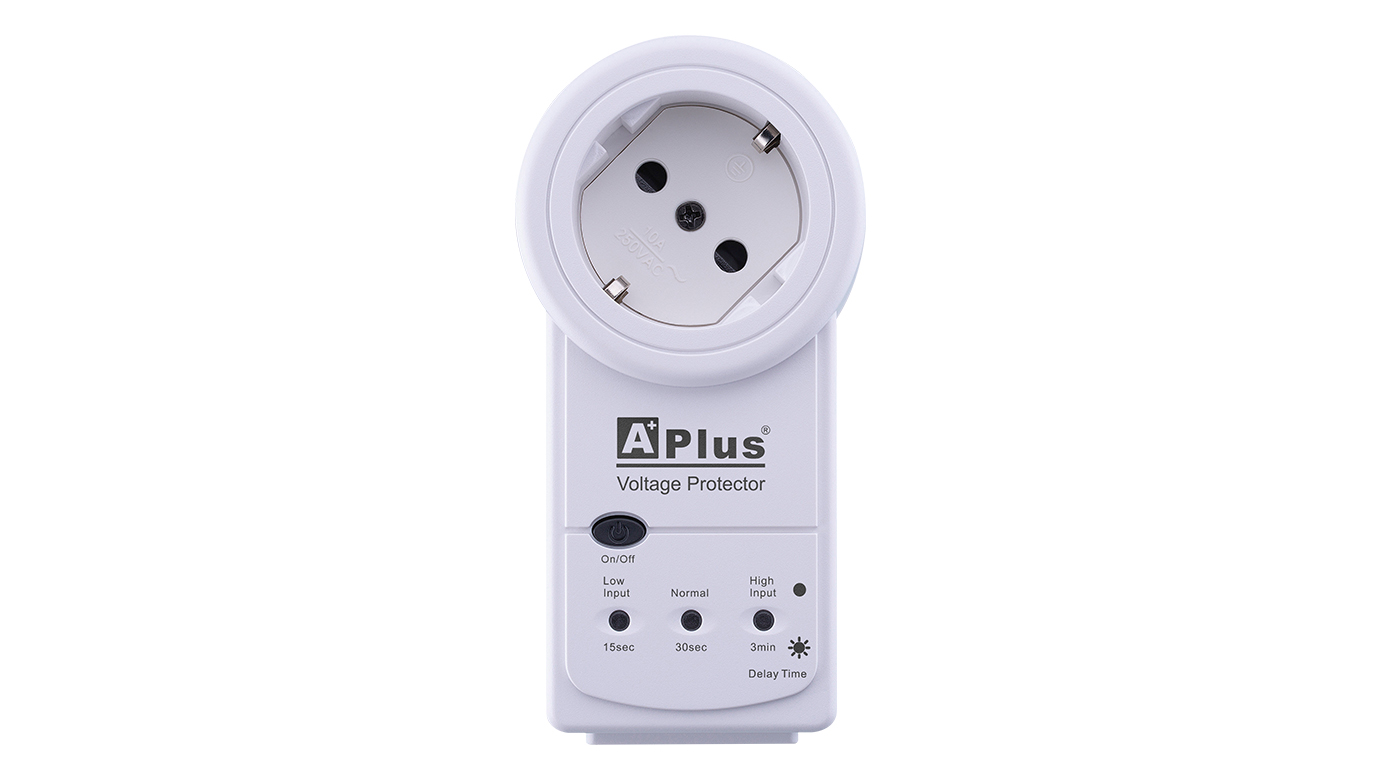

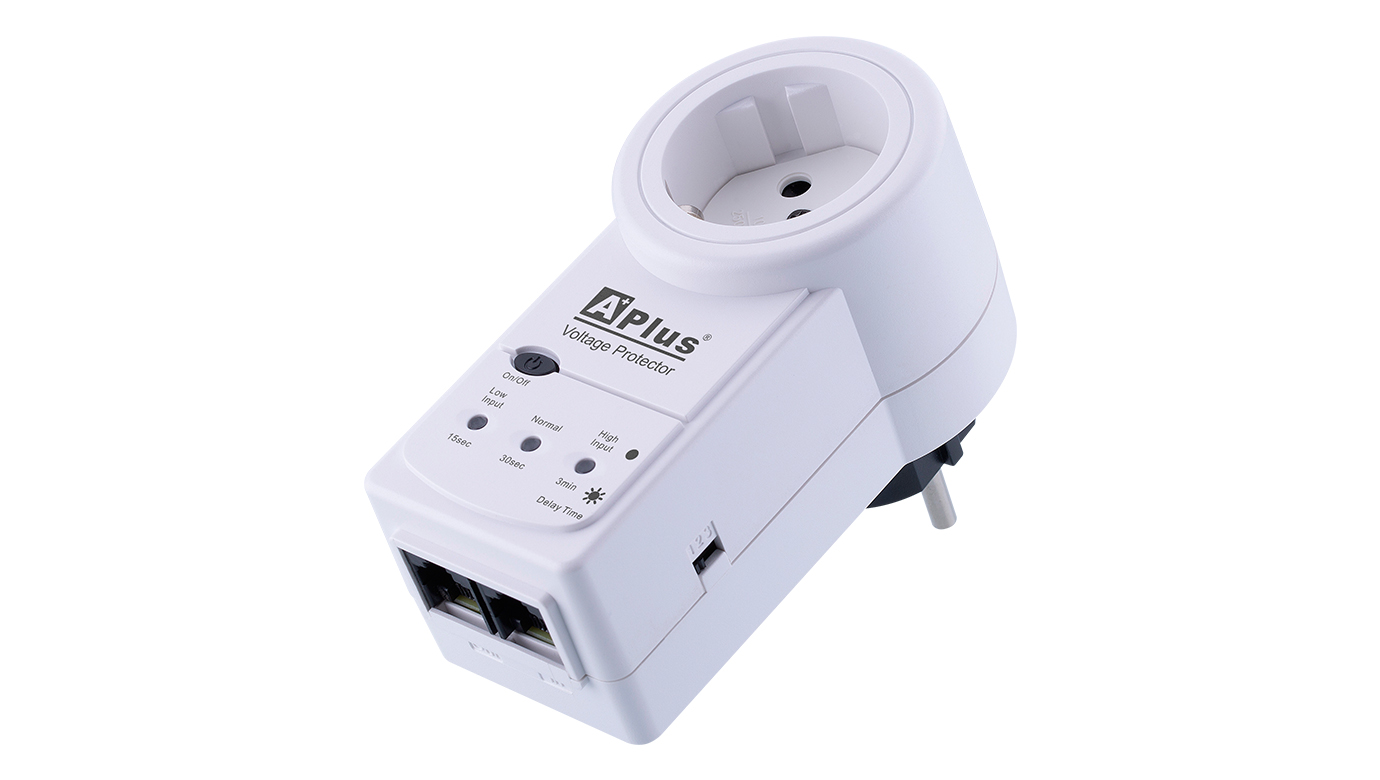

PlusGuard 12 Series
10AMPS

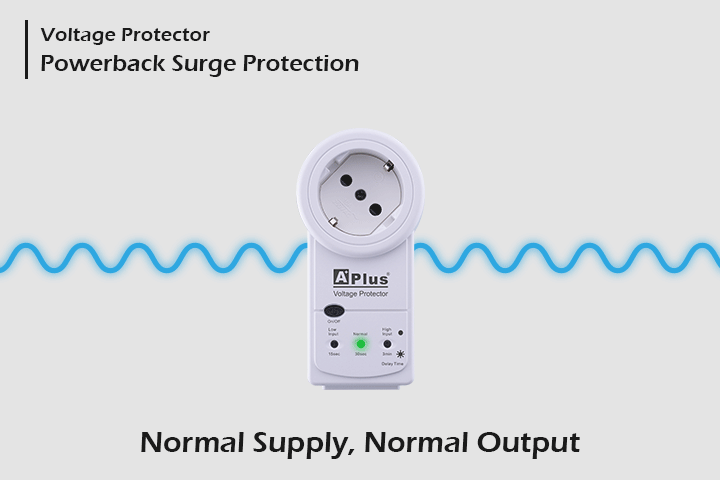

The PlusGuard 12-10A is a Voltage Protector rated at 10 Amps, prevents damages to electrical and electronic equipment from power fluctuation, especially over and under voltage levels of long duration. The 15 sec. / 30 sec. / 3 min. delay reconnection provides protection against power-back surge commonly experienced after resumption of power in a power cut situation. Build-in MOV excess electricity for additional protection. The PlusGuard 12-10A will automatically guard your equipment against brownouts or transient spikes induced by lighting or power line failure.
● Surge Suppression 900 Joules
● Microprocessor Controlled Design
● Absorbs Excess Electricity through MOVs
● LED Indicators Provide Status Information

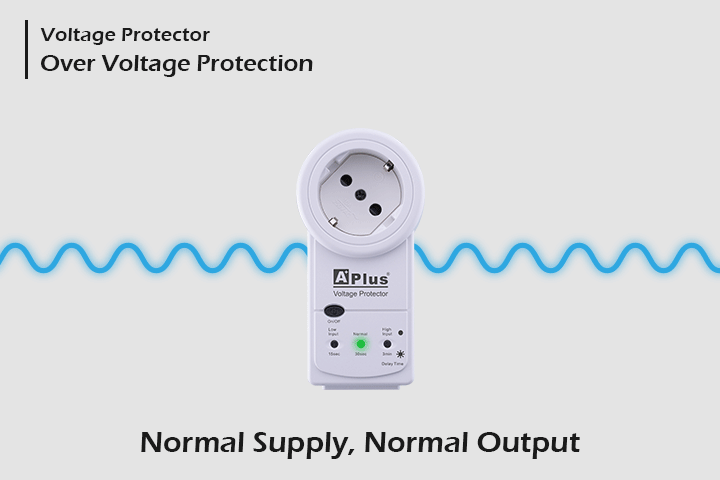

● High voltage and low voltage cut-off protection
● Delay Reconnection Selector 15 sec. / 30 sec. / 3 min.
● Provide Modem/Phone Surge Suppression Protection
● Microprocessor Controlled Design
● Absorbs Excess Electricity through MOVs
● LED Indicators Provide Status Information
● High voltage and low voltage cut-off protection
● Delay Reconnection Selector 15 sec. / 30 sec. / 3 min.
● Provide Modem/Phone Surge Suppression Protection
| MODEL | PlusGuard 12-10A |
| INPUT | |
| Max. Current | 10 Amps |
| Nominal Voltage | 220/230/240Vac |
| Line Low Loss | 180Vac |
| Line Low Comeback | 190Vac |
| Line High Loss | 265Vac |
| Line High Comeback | 260Vac |
| Frequency | 50/60Hz (Auto-sensing) |
| Spike Protection | 900 Joules |
| Connector | German plug |
| OUTPUT | |
| Nominal Voltage | 220/230/240Vac |
| Frequency | 50Hz or 60Hz |
| Delay Timer | 15 sec. / 30 sec. / 3 min. |
| Connector | Schuko socket |
| INDICATOR | |
| LED | 3 LEDs |
| ENVIRONMENT | |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 0-95% (Non-condensing) |
| Acousitc Noise | <40dB at 1M |
| PHYSICAL | |
| Dimension | 120*60*90mm |
| Net Weight | 150g |
*The capacity of connected loading do not exceed the capacity of Voltage Protector.
