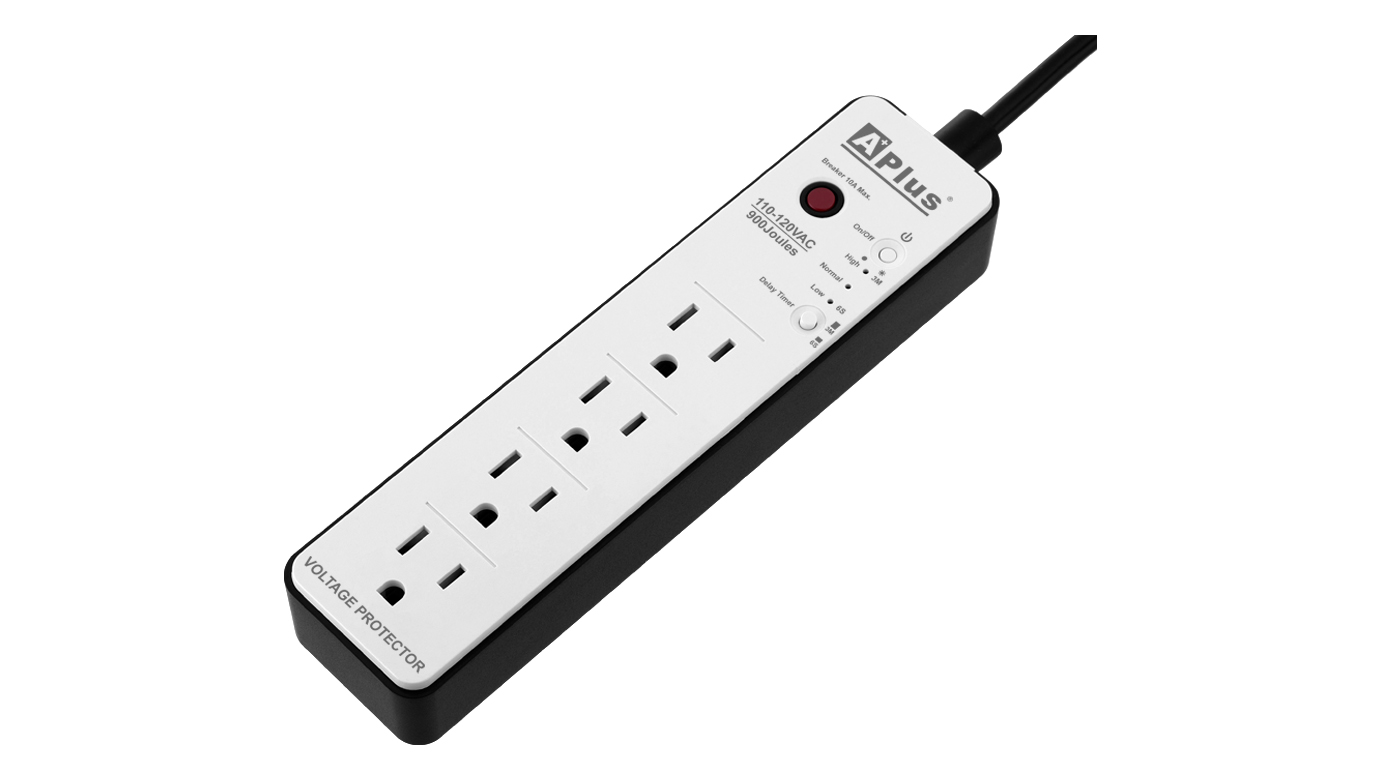

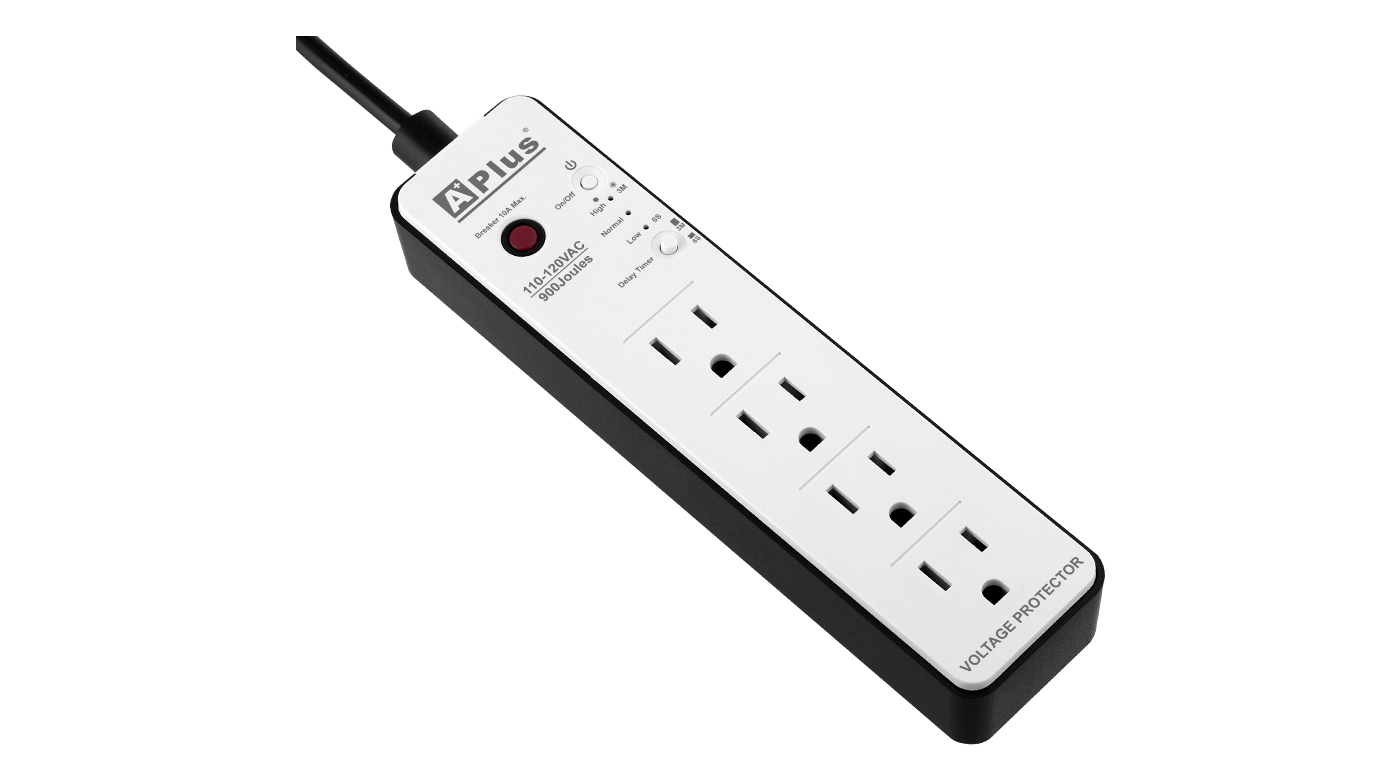

PlusGuard 7 Series
10AMPS
The PlusGuard 7-10A is a multi-outlet design Voltage Protector rated at 10 Amps, prevents damages to electrical and electronic equipment from power fluctuation, especially over and under voltage levels of long duration.

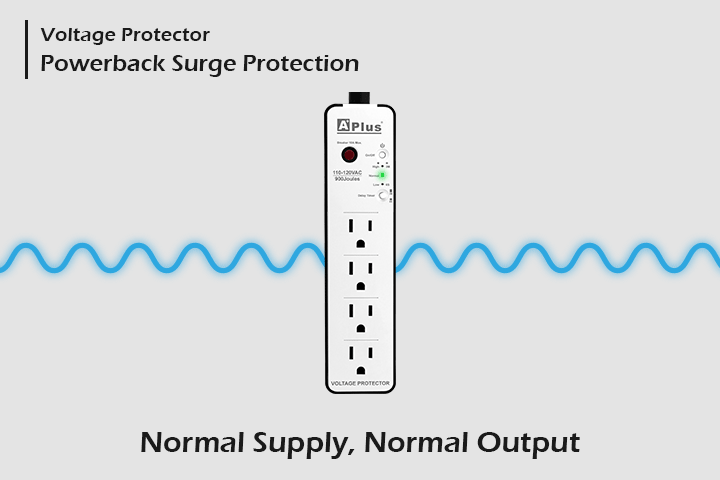

The 6 sec. / 180 sec. delay reconnection provides protection against power-back surge commonly experienced after resumption of power in a power cut situation. Build-in MOV excess electricity for additional protection.

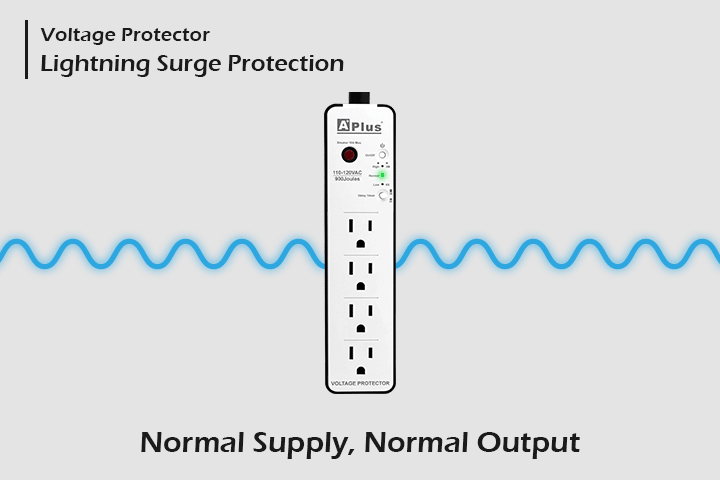

The PlusGuard 7-10A will automatically guard your equipment against brownouts or transient spikes induced by lighting or power line failure.
The 6 sec. / 180 sec. delay reconnection provides protection against power-back surge commonly experienced after resumption of power in a power cut situation. Build-in MOV excess electricity for additional protection.
The PlusGuard 7-10A will automatically guard your equipment against brownouts or transient spikes induced by lighting or power line failure.

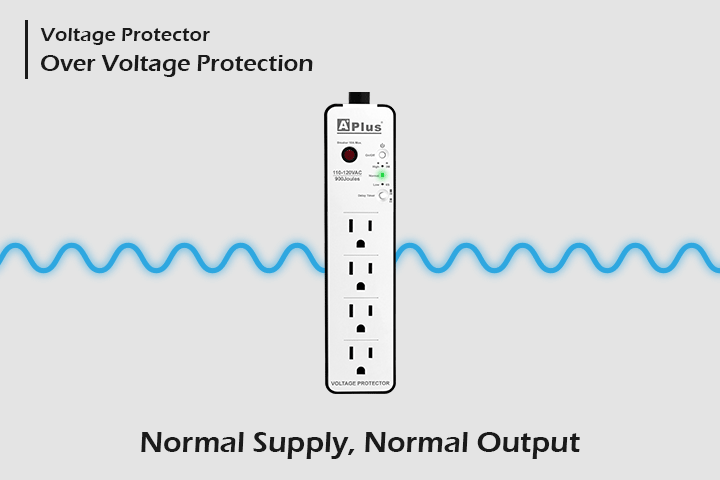

● High voltage and low voltage cut-off protection
● Delay reconnection selector 6 sec. / 180 sec.
● Absorbs excess electricity through MOVs
● Microprocessor controlled design
● Grounded multi-outlet design

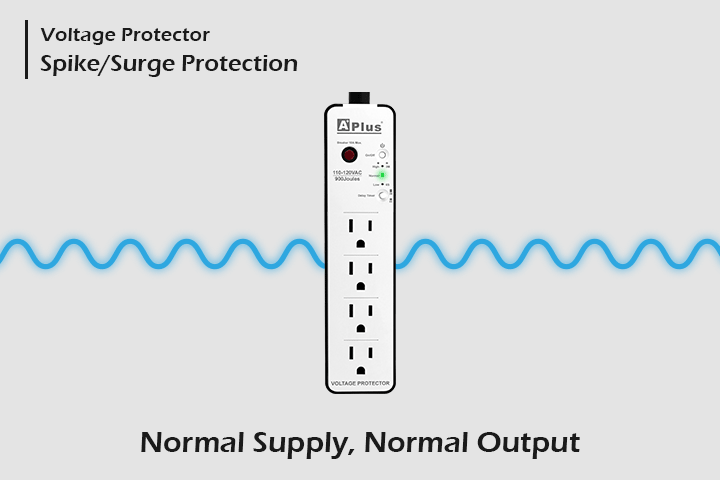

● Surge suppression 900 Joules
● Provide overload protection
● Wall Mountable
● Delay reconnection selector 6 sec. / 180 sec.
● Absorbs excess electricity through MOVs
● Microprocessor controlled design
● Grounded multi-outlet design
● Surge suppression 900 Joules
● Provide overload protection
● Wall Mountable
| MODEL | PlusGuard 7-10A |
| INPUT | |
| Max. Current | 10 Amps |
| Nominal Voltage | 110-120Vac |
| Line Low Loss | 90Vac |
| Line Low Comeback | 95Vac |
| Line High Loss | 140Vac |
| Line High Comeback | 137Vac |
| Frequency | 50Hz or 60Hz |
| Spike Protection | 900 Joules |
| Type of Input | Nema5-15P plug |
| Cable Length | 1.2M (3.9ft) |
| OUTPUT | |
| Nominal Voltage | 110-120Vac |
| Frequency | 50Hz or 60Hz |
| Delay Timer | 6 sec. / 180 sec. |
| Connector | Nema5-15R socket*4pcs |
| INDICATOR | |
| LED | 3 LEDs |
| ENVIRONMENT | |
| Operating Temperature | 0°C-40°C (32°F-104°F) |
| Humidity | 0-95% (Non-condensing) |
| Acousitc Noise | <40dB at 1M |
| PHYSICAL | |
| Net Weight | 240g |
*The capacity of connected loading do not exceed the capacity of Voltage Protector.
